Awning for Mercedes-Benz Marco Polo / Horizon / Activity and Viano Marco Polo incl. rainproof connection, bracket and installation
The best way to enjoy the comfort of an awning. Visually perfectly integrated, rainproof connection to the vehicle, no drilling or gluing necessary, attachment to original screw points, no influence on the vehicle height, no wind noise, low weight, can be removed in 5 minutes, free piping rail on the vehicle and additional piping rails on the awning, does not require a crank. The installation time, including instruction from us, takes approx. 1 hour.
Shipping is excluded.
Features and advantages of this awning
Optimal visual adaptation to the shape of the Mercedes-Benz Marco Polo
attachment to existing original points, no gluing or drilling on the vehicle necessary
the vehicle height is not affected and remains under 1.99 metres
Suitable for car washes (if the operator of the car wash allows it)
No noticeable wind noise
low weight approx. 18 KG
Compact and well protected in an aluminium housing

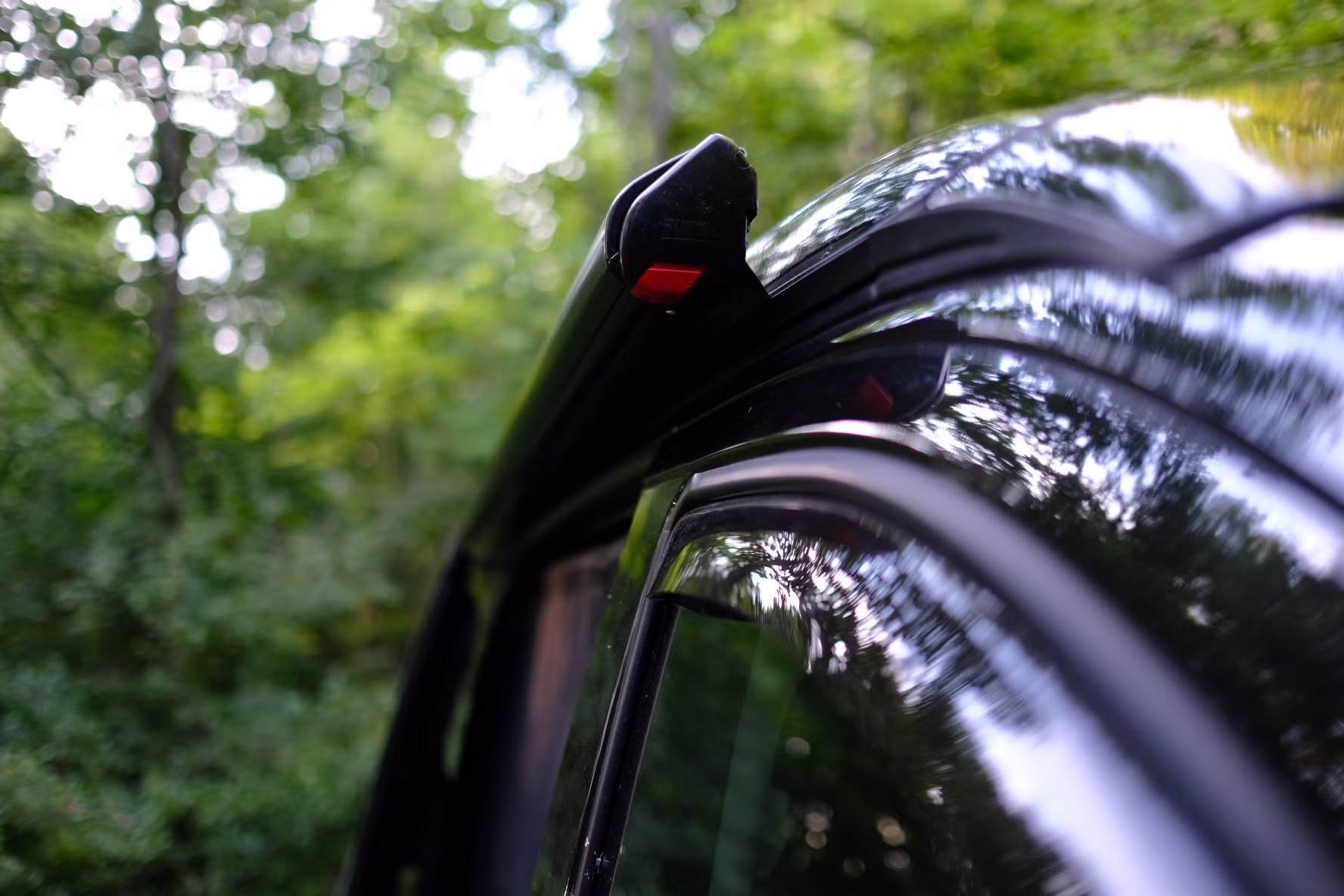

Rainproof connection to the vehicle
no need to carry a crank handle thanks to integrated feet and cross struts in the roller
quick and easy handling thanks to unrolling in both directions
the piping rail on the vehicle remains free for other Marco Polo accessories
Two integrated piping rails in the roller or roll
easy assembly and disassembly of the awning including bracket thanks to V4A / M6 hexagon screw connection
Can be completely assembled and disassembled with a 10 mm open-end spanner or 10 mm ratchet
No impairment of the vehicle height approx. two centimetres below the maximum vehicle height
waterproof and UV-resistant multi-layer vinyl fabric, printed on both sides

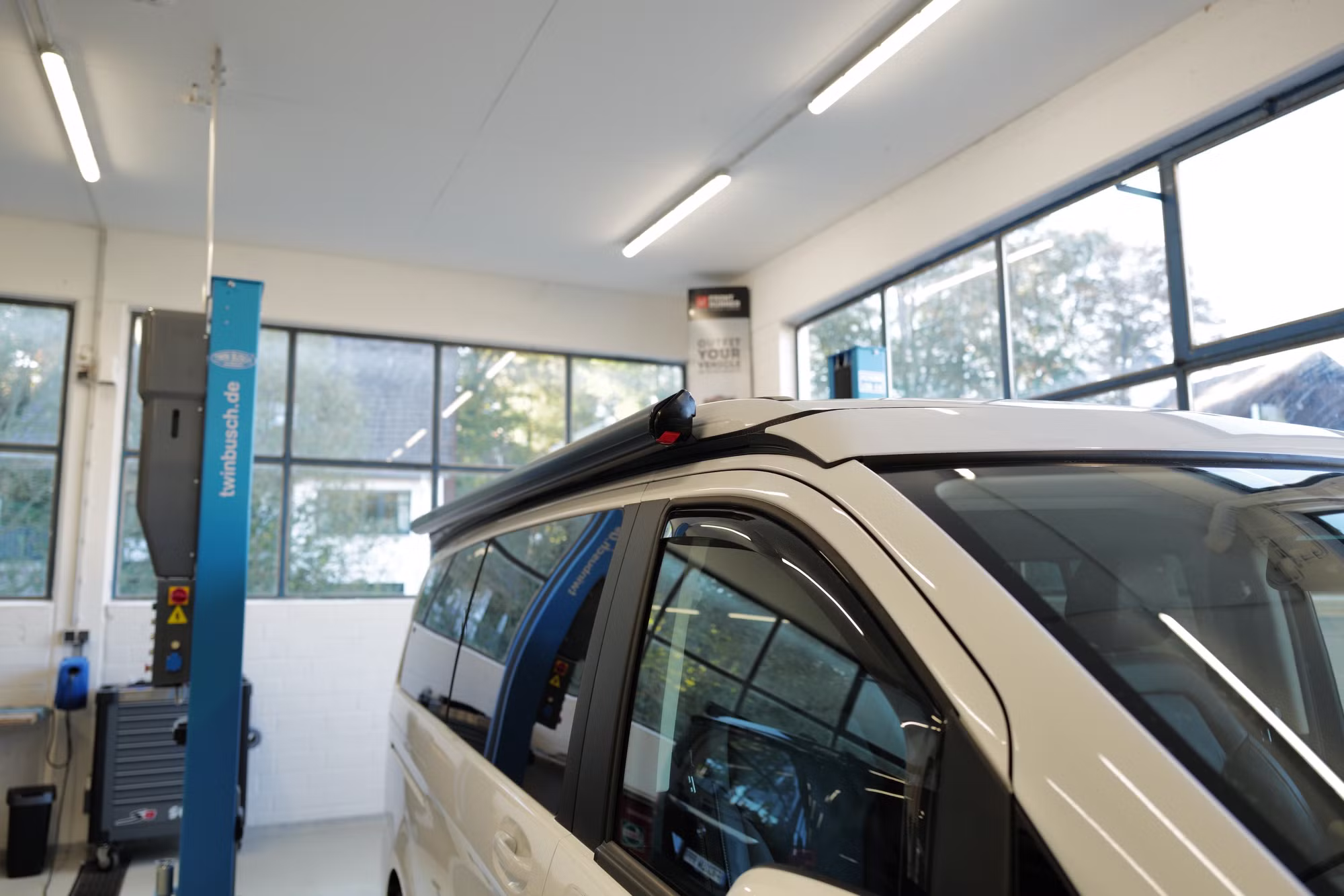

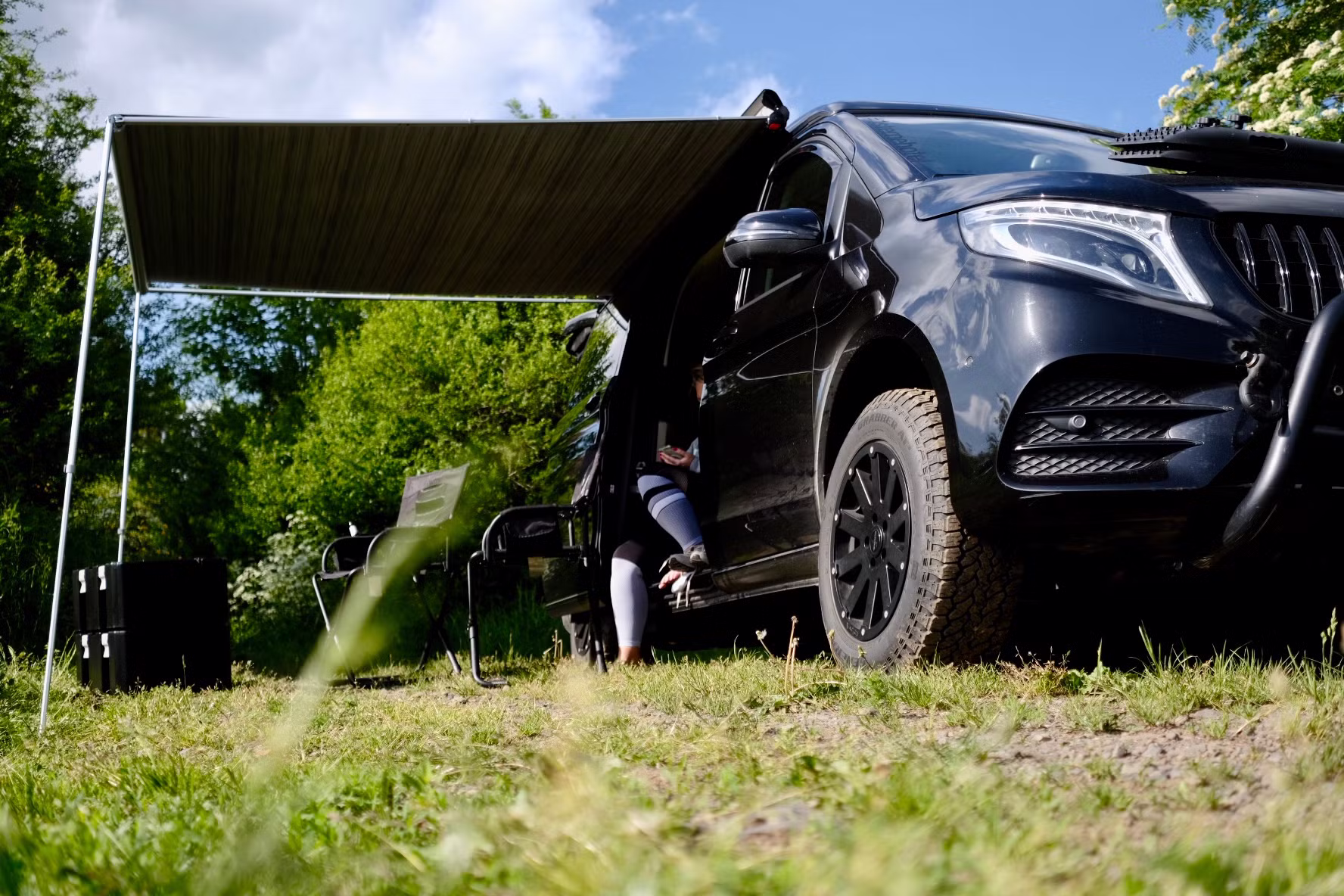

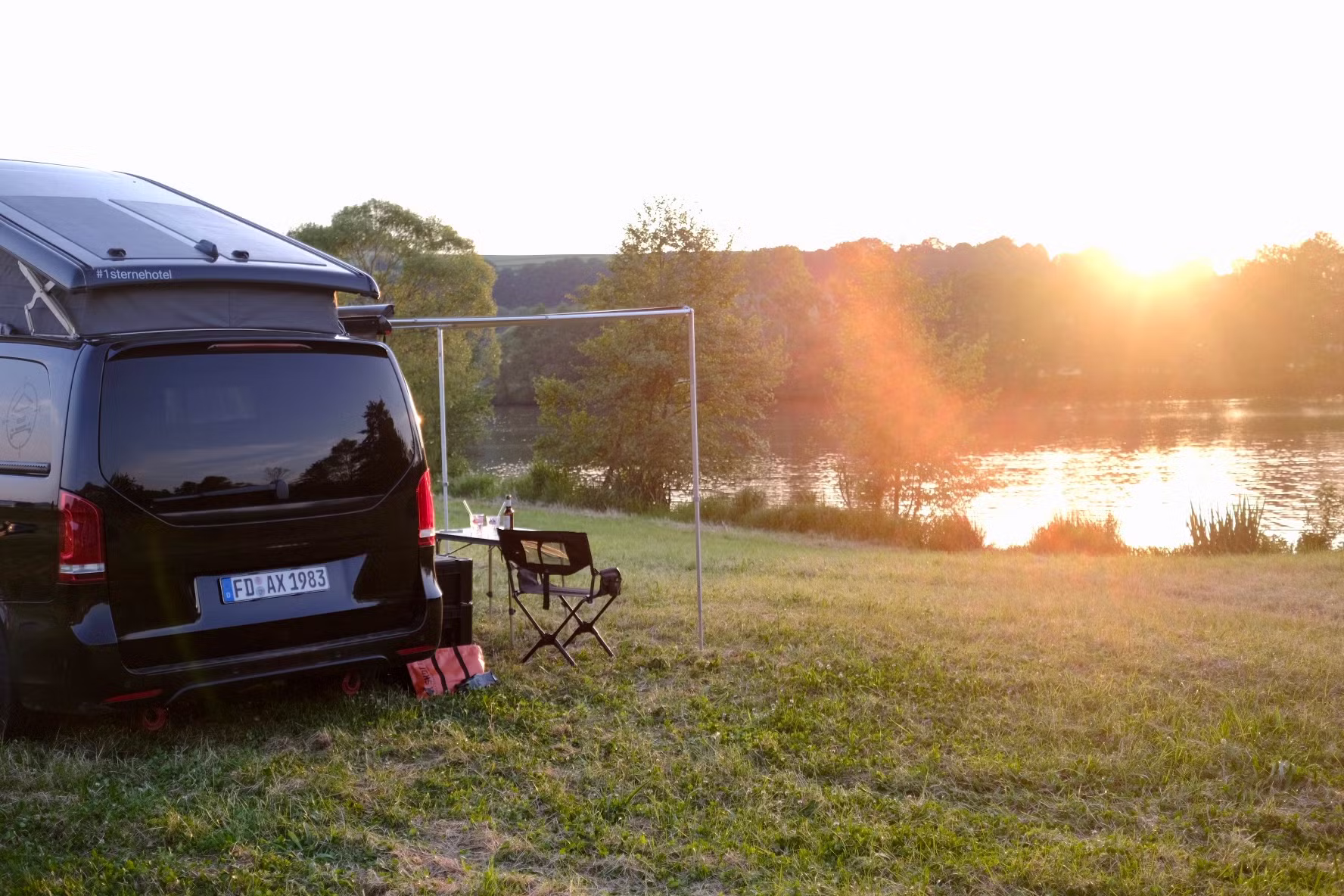

Our awning is unobtrusive, practical and can be operated manually. The awning is equipped with integrated support feet in the roller. The awning is simply attached to the Mercedes-Benz Marco Polo / Activity / Horizon (W447) & Viano Marco Polo (W639) with our specially developed mounting system, without drilling or gluing, and can be removed within two minutes using three or four screws (M6 hexagon / 10 mm spanner or ratchet), depending on the variant. Unlike other accessory awnings or the original Westfalia or Thule awning, no attachment part is left standing.
Our specially developed mounting system for Mercedes-Benz Marco Polo W447 (2014-today) with manual pop-up roof, electric pop-up roof (easy up) and the Viano Marco Polo W639 (2004-2014) with manual roof, brings the awning as close as possible to the vehicle. The holding system is designed for the passenger side. It is therefore not possible to install the awning on the driver's side of MPH & MPA's.

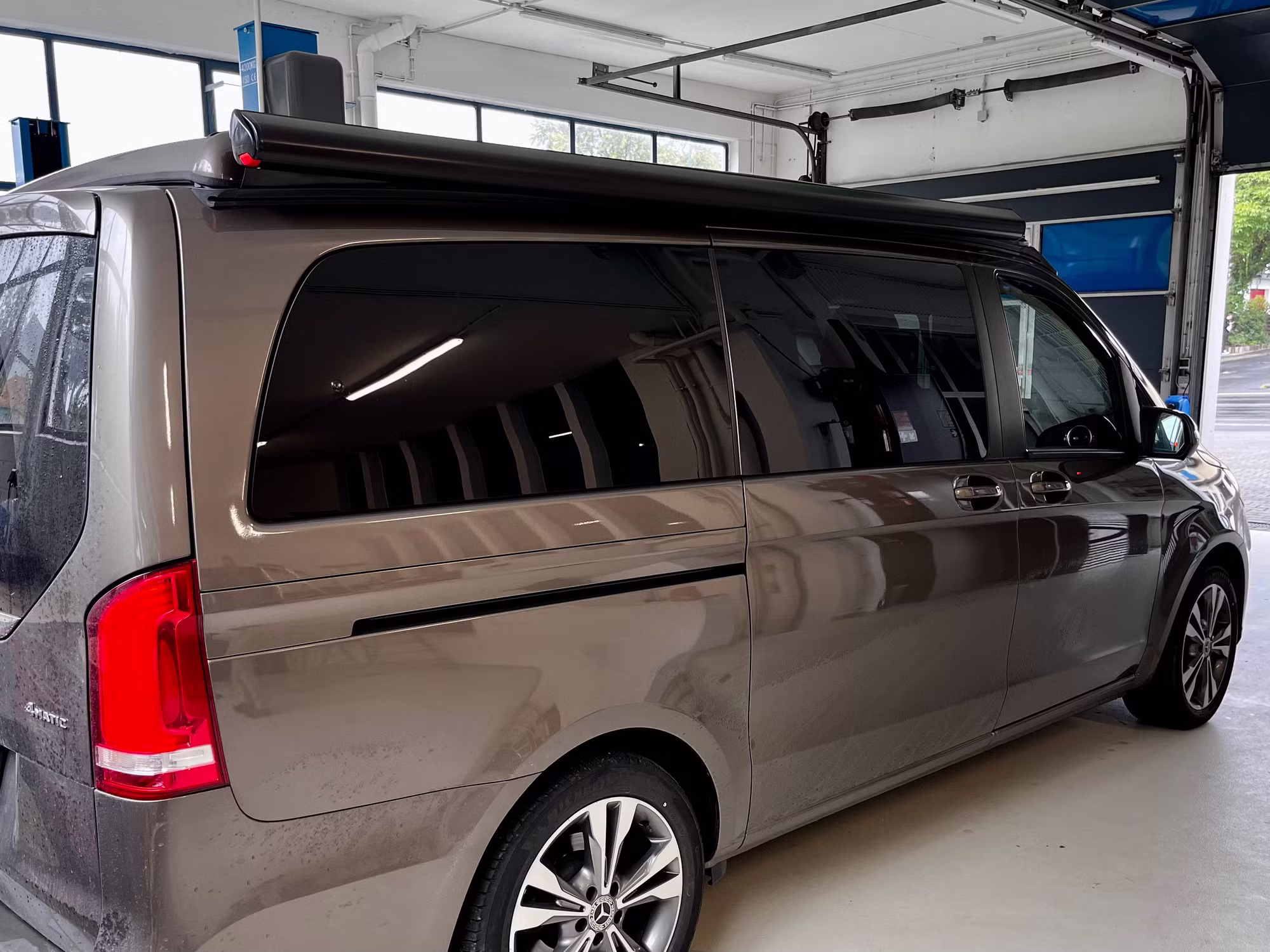

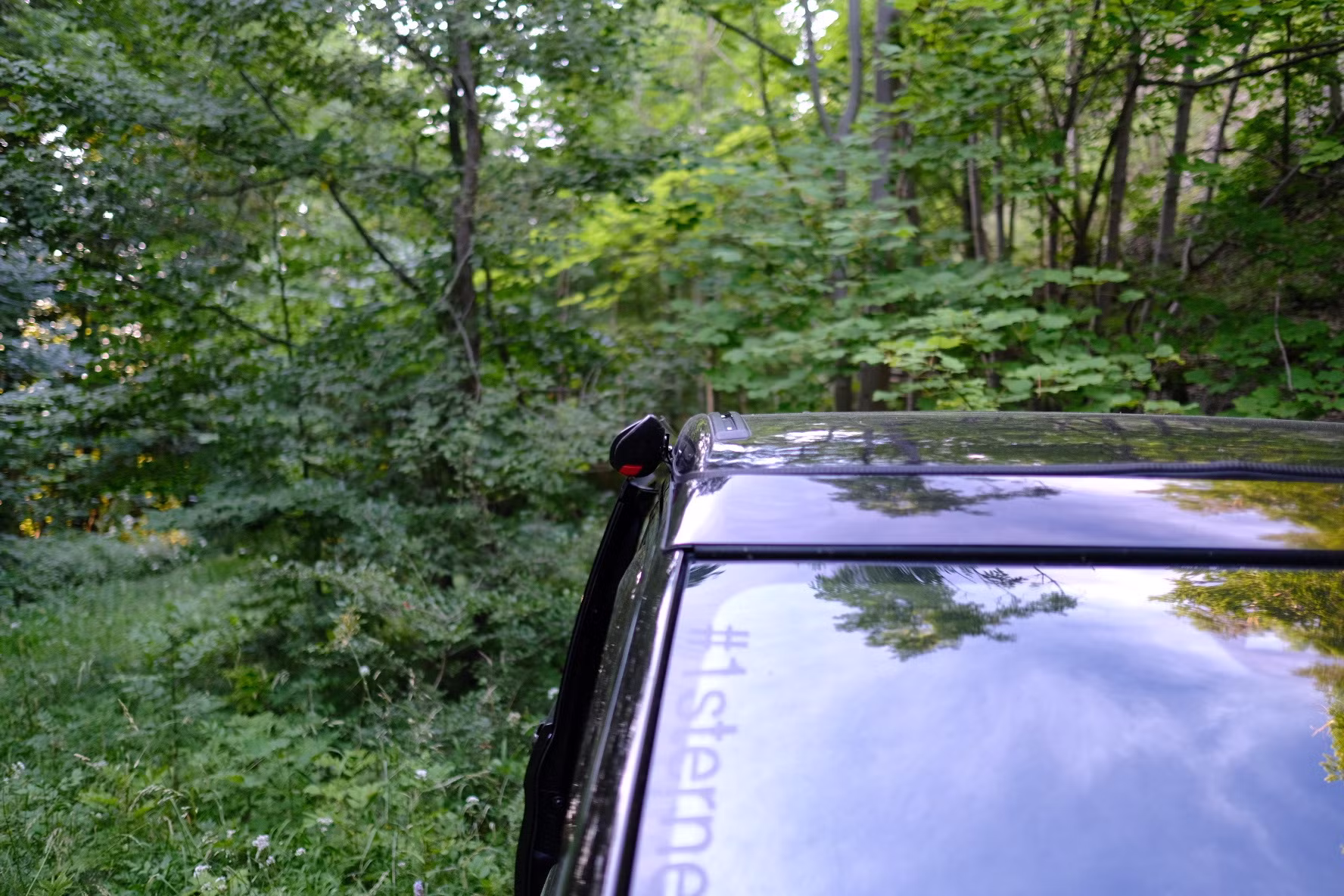

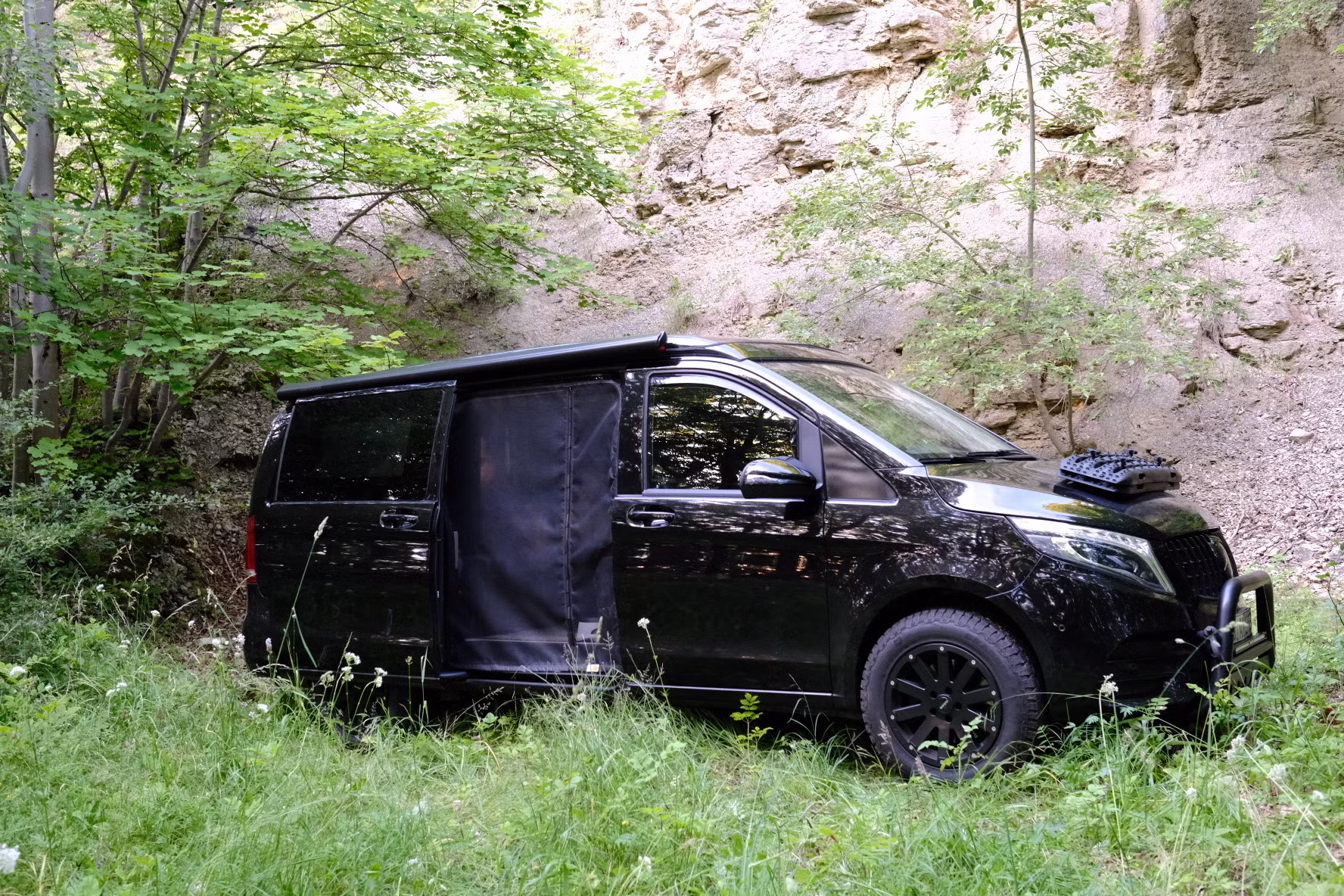

In order to minimise wind noise and prevent the awning from looking like a foreign object, the awning sits very close to the vehicle without protruding sideways. Adaptation to the shape of the vehicle and minimal wind noise were at the forefront of the design of the mounting system. The maximum vehicle height is not affected by the awning; depending on the vehicle or roof variant, we are two to three centimetres below the maximum Marco Polo height.
Thanks to the three millimetre thick, galvanised and powder-coated iron brackets, the awning is optimally adapted to the shape of your Mercedes-Benz Marco Polo. The sturdy mounting system, which is attached to the original screw points, ensures a perfect hold, whether the GRP roof is up or down, and a rainproof connection to the vehicle is created by an attached rubber lip. The awning offers protection in rain and sun and is an all-weather all-rounder. Use of the car wash or underground car park is still possible.
The rainproof connection to the vehicle not only provides sufficient protection in the rain, but also enables the use of car washes and also ensures less wind noise. In addition, the rear pop-up window can remain open in light rain without it raining into the vehicle.
The original piping rail fitted by Westfalia remains free and can continue to be used. The roller of the awning also has two additional piping rails for retracting front parts or accessories.

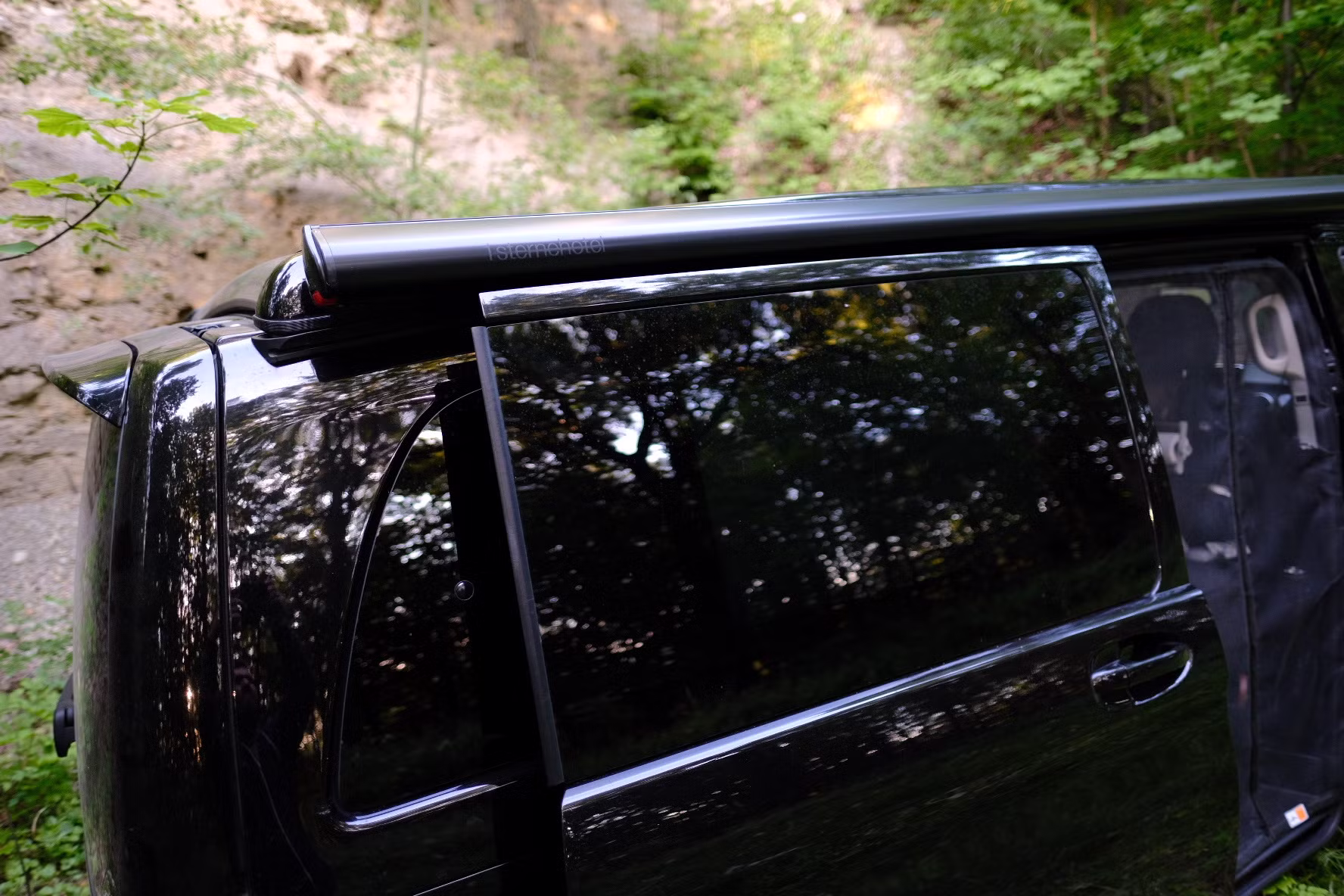

The housing of the awning is made of sturdy but lightweight aluminium in matt black. The reinforced roller, in which the support feet and tensioning arms are located, can be rolled up both inwards and outwards. The fabric can be rolled up in both directions, making it extremely easy to handle.
Scope of delivery
- Lightweight awning Fiamma F35 Pro in 250cm length, housing in matt black (Deep Black), with grey / black fabric (Royal Grey).
- Vehicle-specific powder-coated awning mounting system for Mercedes-Benz Marco Polo (manual roof / electric roof) Viano Marco Polo (with manual roof)
- Pegs for fixing to the ground
- Pegs and tensioning rope for lateral tensioning
- Assembly on site is included in the offer
- Assembly time incl. instruction approx. one hour
Handling instructions
- The awning should ALWAYS be secured with pegs and additionally tensioned IMMEDIATELY after assembly
- Before travelling, the awning must be checked for stability and correctly closed housing
- All screws must be checked regularly, approx. every three months, for tightness
Technical data
- Housing: Length: 250cm x drop-shaped: 9.5 x 8cm

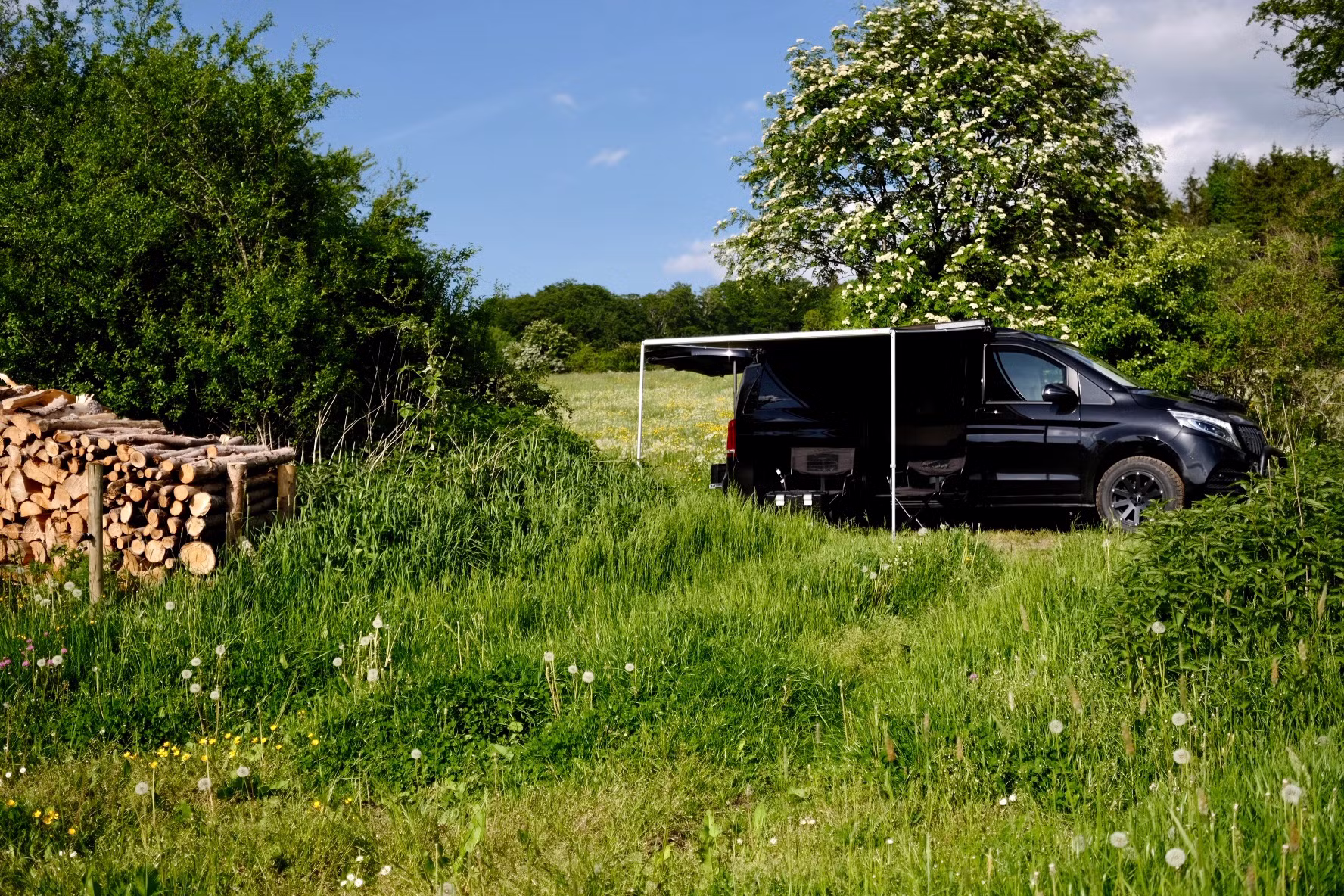

- Sun and rain cover: approx. 235cm x 225cm
- Weight: approx. 18KG
Compatibility
Our awning system is only compatible with the following vehicles
- Mercedes-Benz Viano Marco Polo 2004 - 2014 with manual pop-up roof
- Mercedes-Benz V-Class Marco Polo 2014 - today with manual pop-up roof
- Mercedes-Benz V-Class Marco Polo 2014 - today with easy up pop-up roof
Artikelnummer: 36491
Model | Markise für easy up Dach W447 |
Manufacturer | Fiamma |
Content | 1 Installation |
Weight | 18400 g |
Condition | New |
