Dashcam and power supply, SD card set for Mercedes - Benz Marco Polo - incl. installation service
Safety when travelling, film your tours, impressions and surroundings.
Shipping is excluded.
Our roof cam set ensures safety when travelling and during everyday driving. The position of the recording is determined by the integrated GPS receiver. The integrated 3-axis G-force sensor ensures automatic recording in the event of vibrations when stationary or accidents while driving.
Integrated WiFi enables control via your smartphone and storage on a microSD card.
The Marco Polo dashcam set contains the following items:

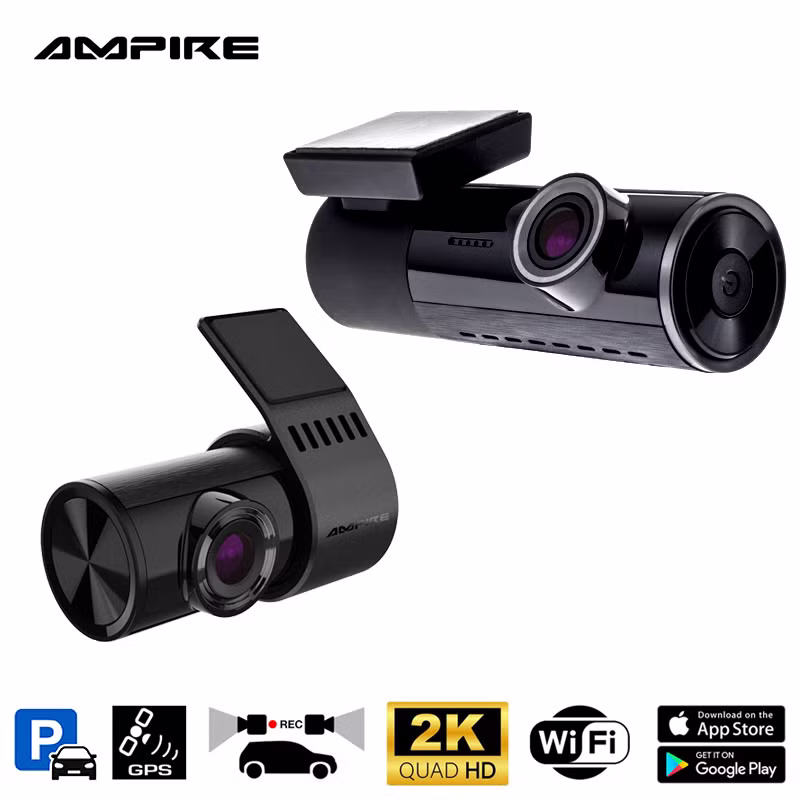

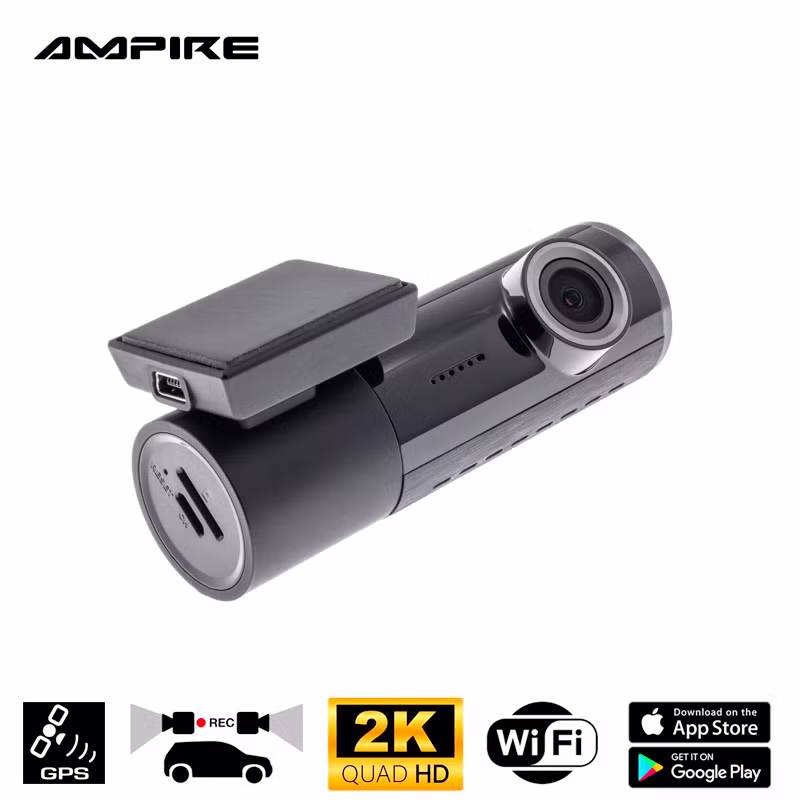

AMPIRE dual dashcam in 2K (Quad HD) resolution, WiFi and GPS

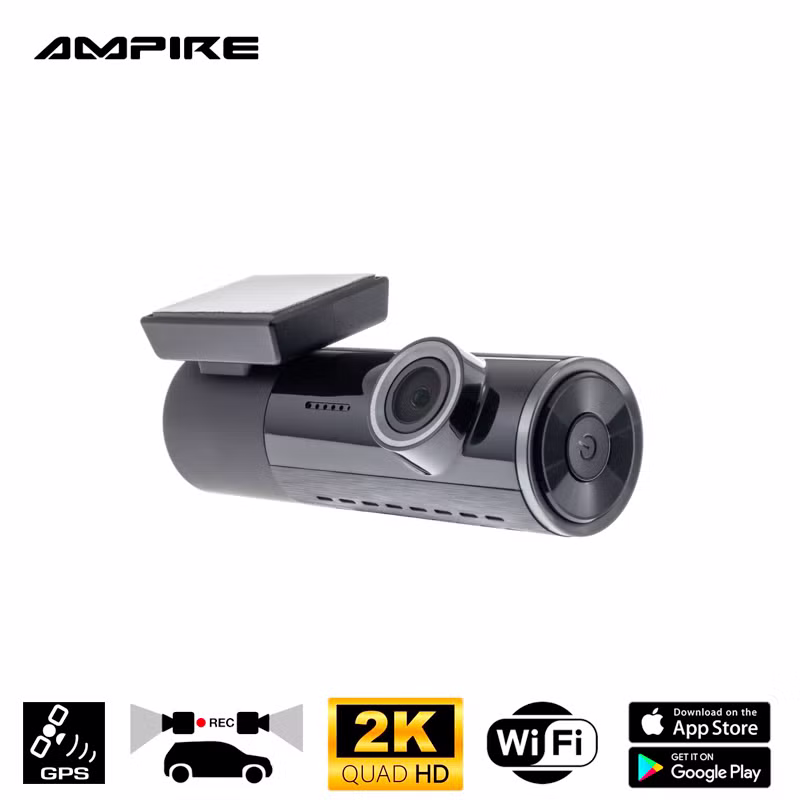

AMPIRE dual dashcam DC2-PRO with high-resolution 2K (QUAD-HD) front cameras and microphone for recording at the front and rear with storage on an optional microSD card (32-128 GB) and complete operation via free smartphone app. An integrated GPS sensor enables positioning and speed determination. The 3D G-sensor integrated in the front camera recognises accidents and automatically saves events on the microSD card. You can view and export the recordings on your smartphone or tablet via WiFi. All settings can also be conveniently made using the smartphone app.

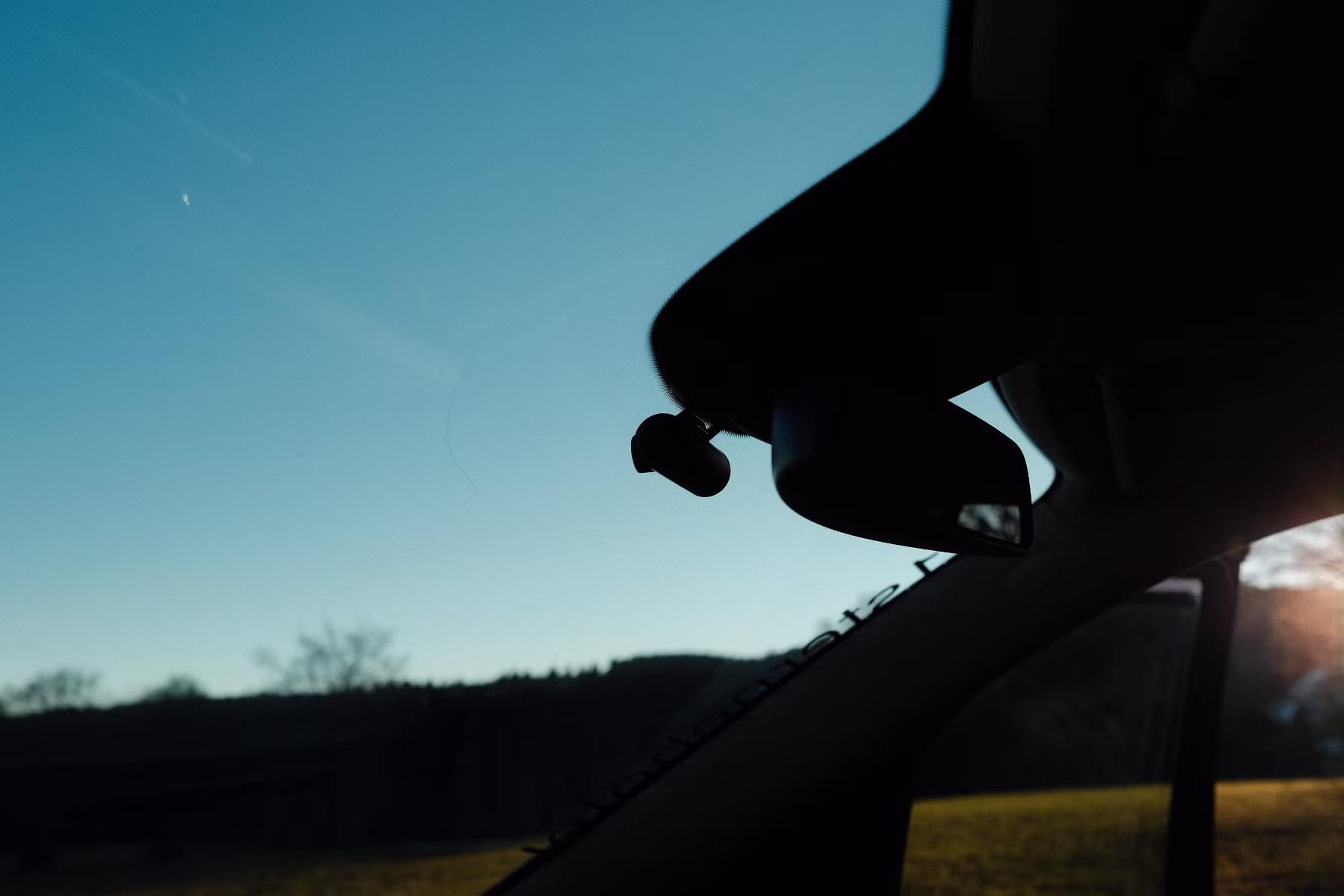

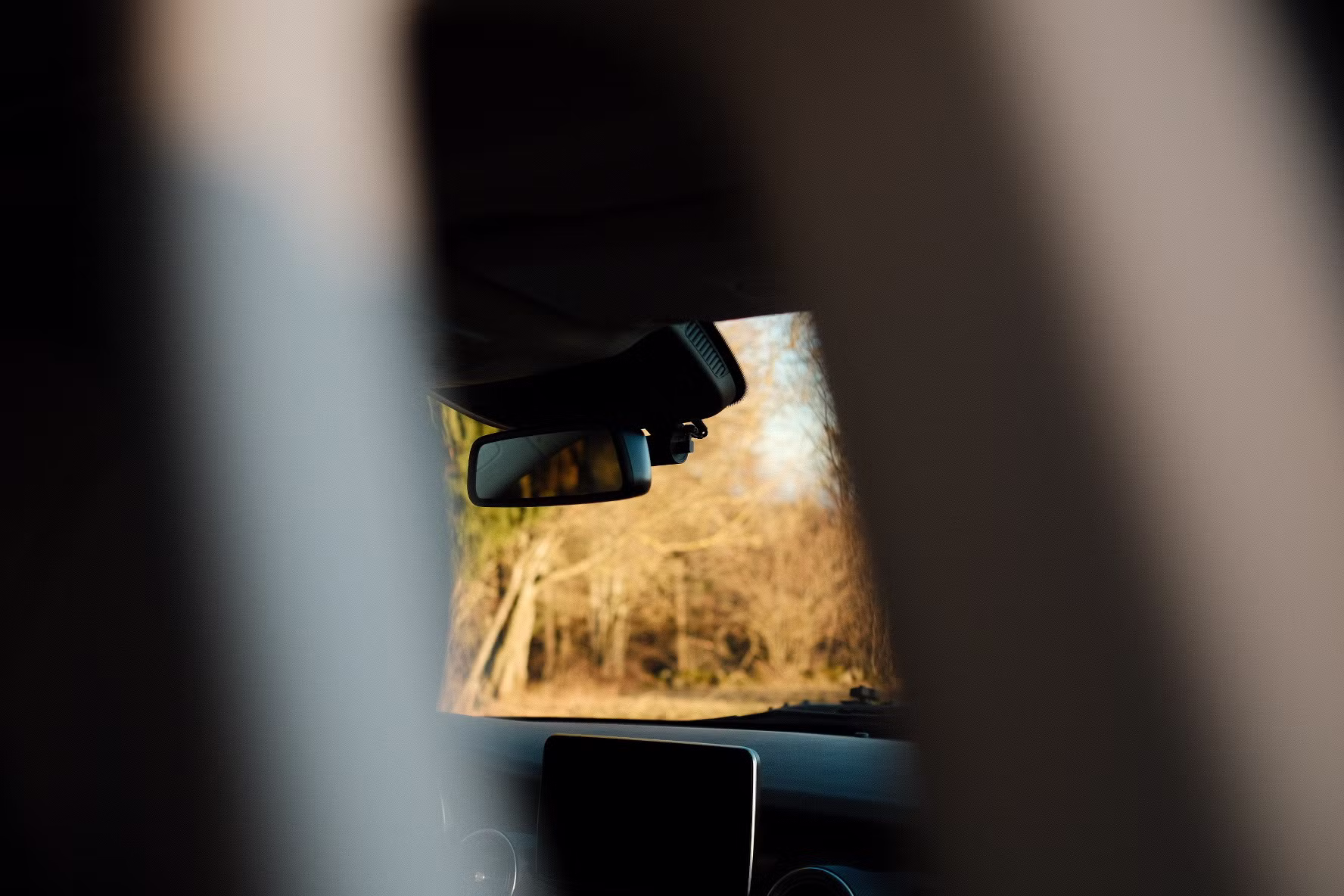

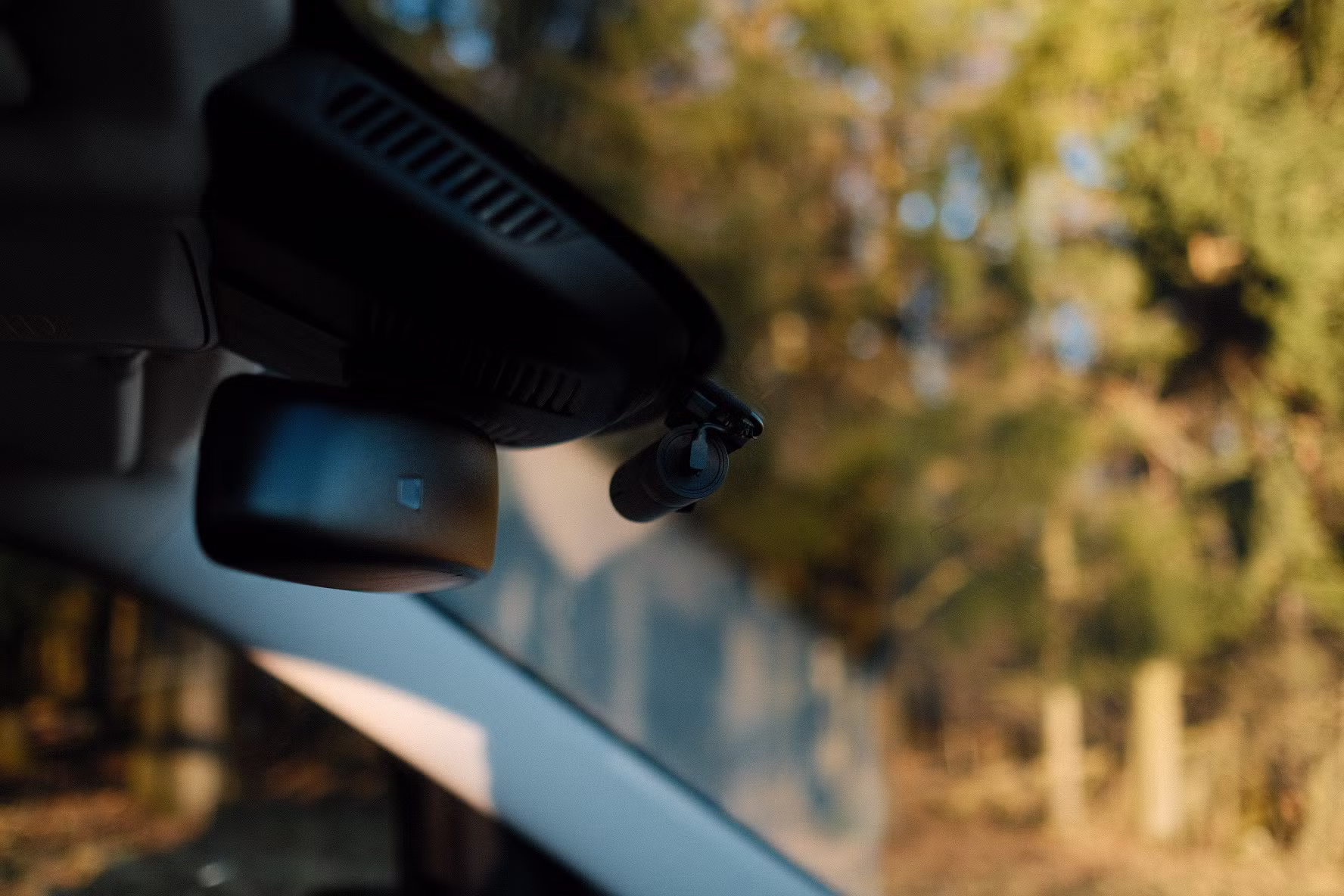

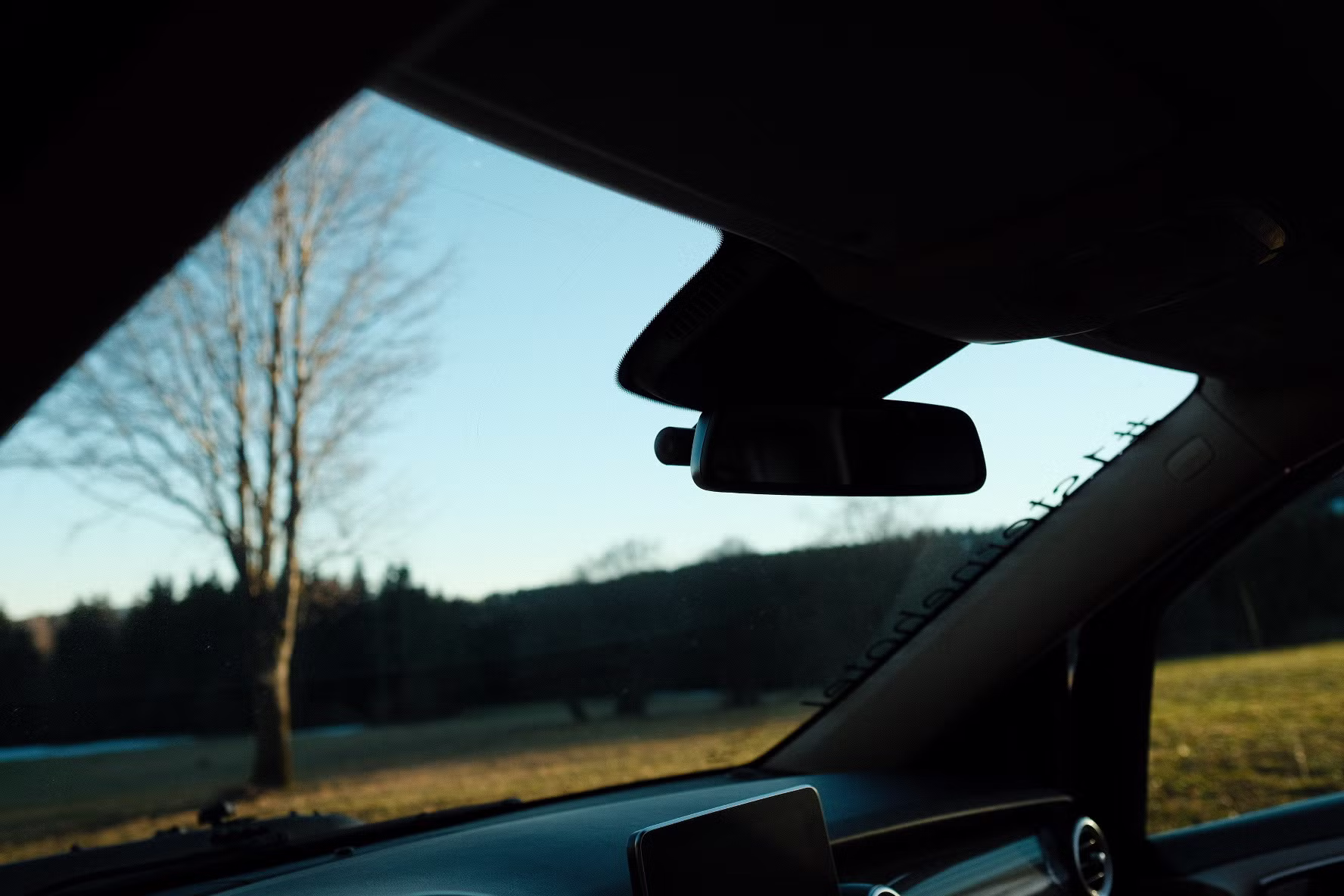

Visually, the matt black DC2.PRO dashcam is rather small and unobtrusive. An LCD display and unnecessary buttons and lighting have been deliberately omitted. Installed behind the interior mirror, the front camera is barely noticeable. The rear camera can be used to monitor the passenger compartment or rear traffic.
Features
143° wide-angle lens (diagonal field of view)
2844x1600 pixel resolution (5MP)
30/25fps frame rate (front/rear)
Integrated GPS receiver for positioning
Integrated 3-axis G-force sensor (adjustable)
Integrated WiFi for control via smartphone
Mini-USB 2.0 Hi-Speed interfaces
Storage on optional microSD card (Class 10)
Voltage stabilisation via super capacitor
Integrated microphone for sound recording (can be switched off)
German/English voice messages (can be switched off)
Parking mode

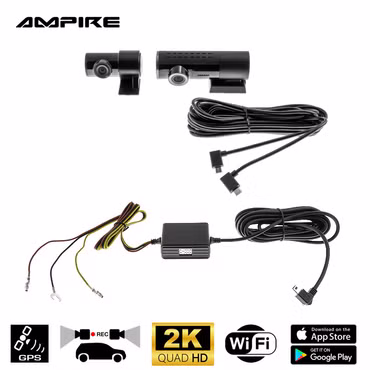

Scope of delivery

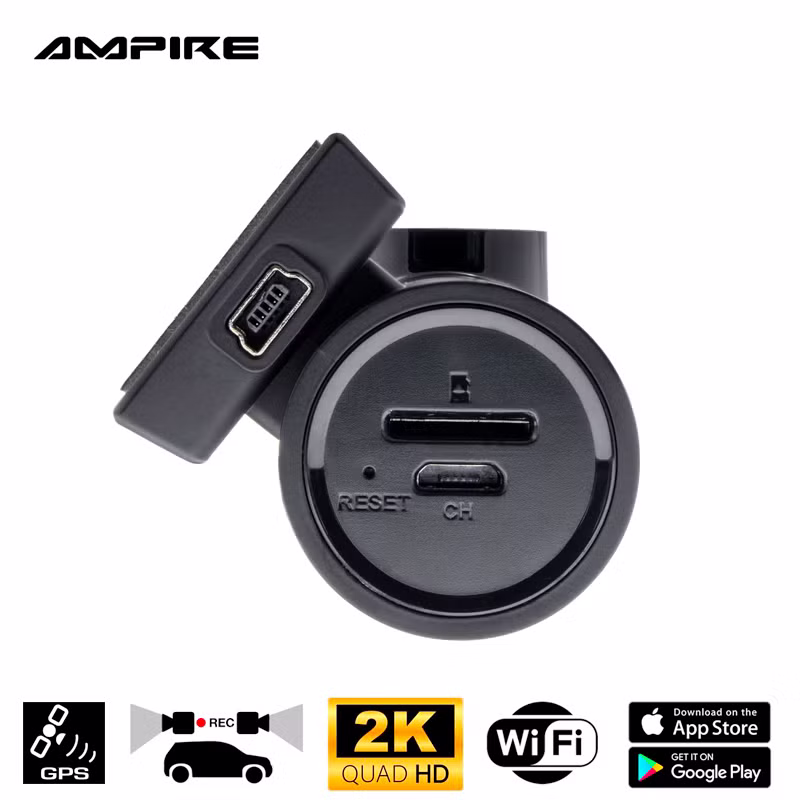

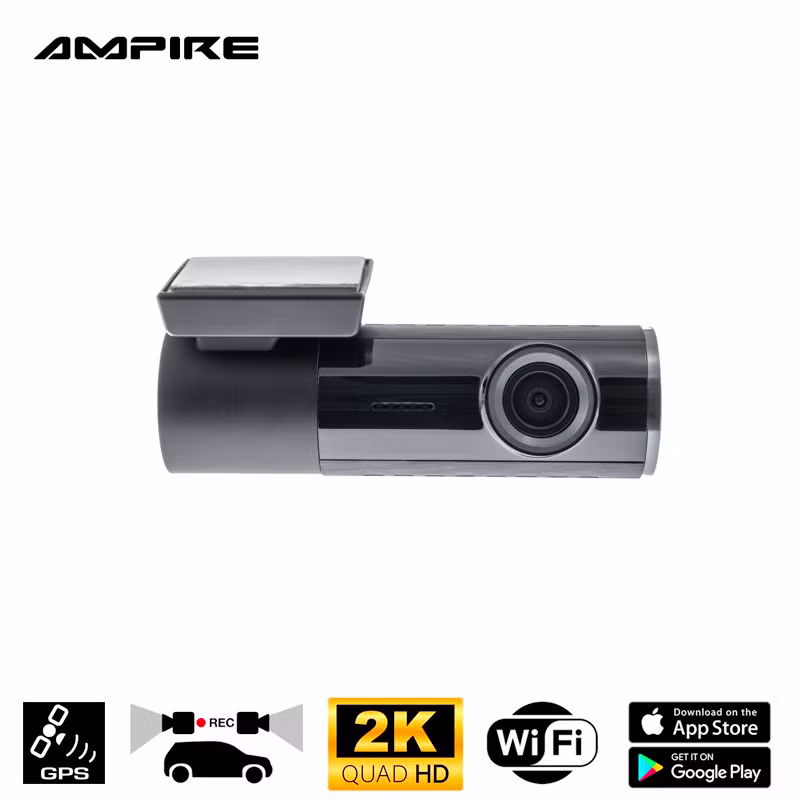

1x front camera with integrated GPS receiver

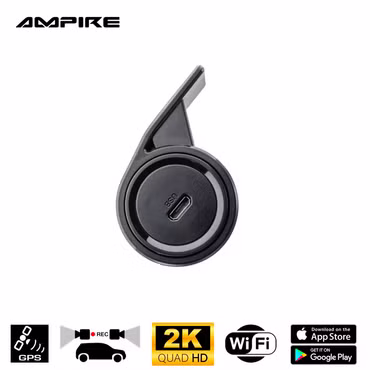

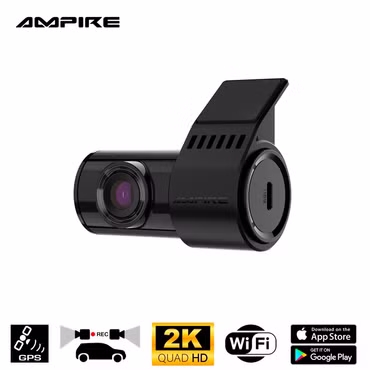

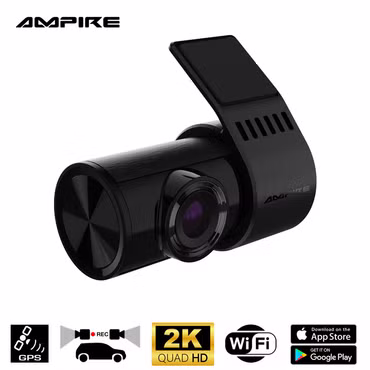

1x rear camera

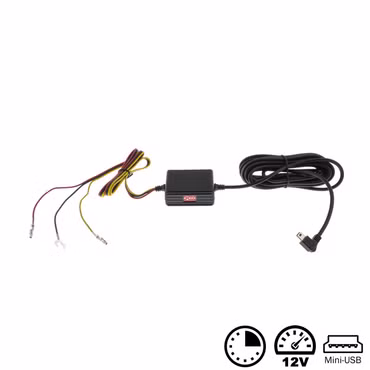

1x ACC2 power supply unit with voltage monitoring and switch-off delay

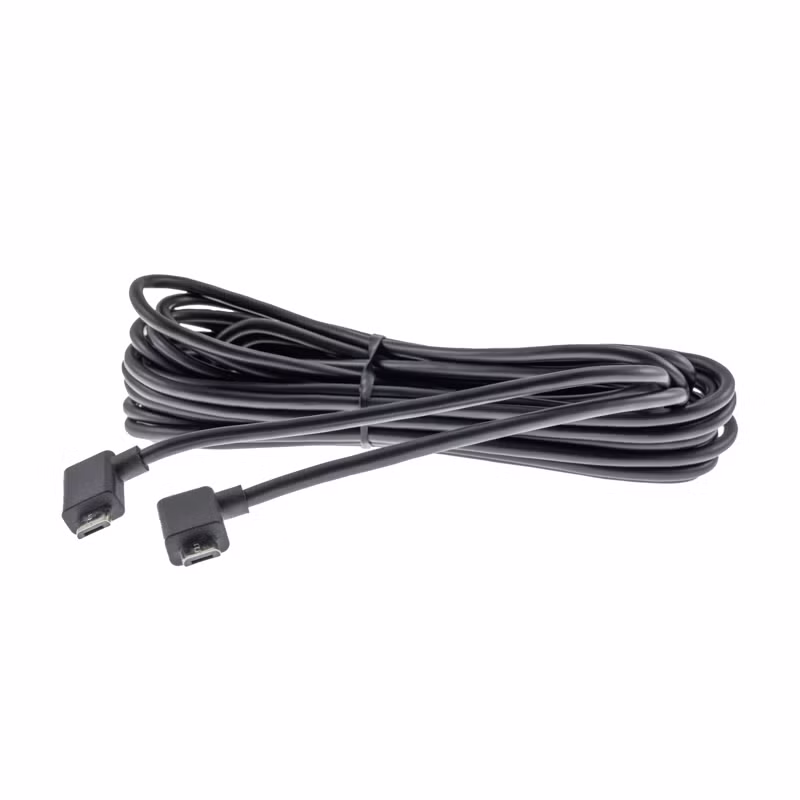

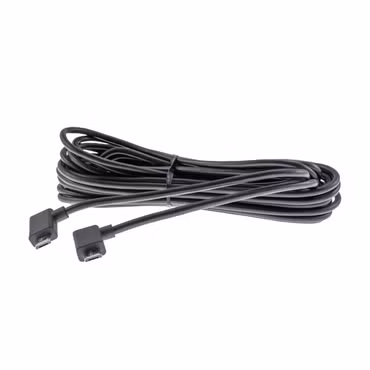

1x 8m connection cable to the rear camera
1x Operating instructions DEU/ENG
1x CE declaration of conformity DEU/ENG
SD card

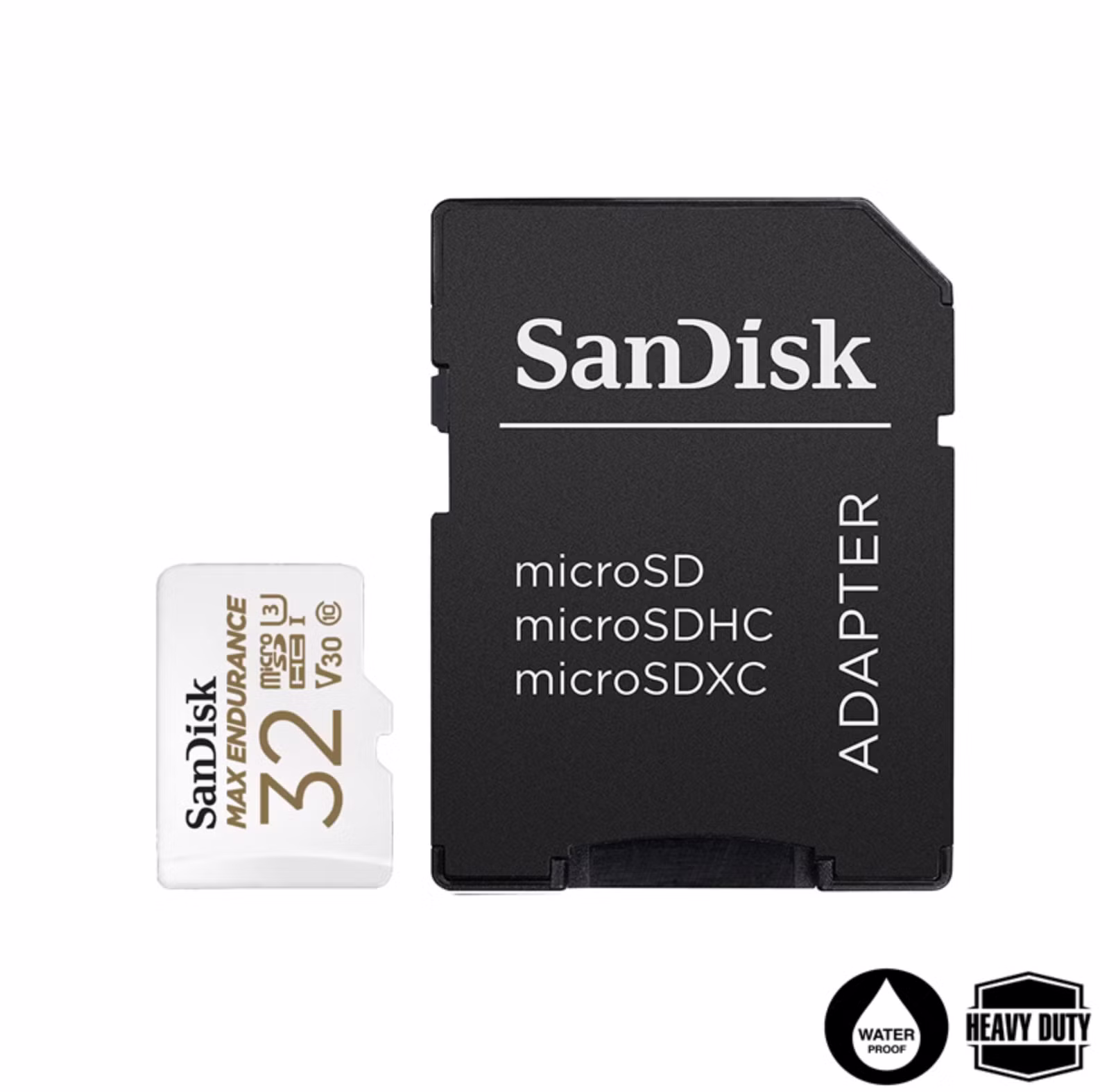

SanDisk Max Endurance microSD card (Class10), 32GB
With the waterproof, temperature-resistant and shockproof SanDisk MAX ENDURANCE microSD card Class 10 with 32 GB storage space, your dashcam can continuously record and transfer up to 120,000 hours (over 13 years).
The memory cards from SanDisk MAX ENDURANCE impress with their capacity, high performance and extreme reliability. With HIGH SPEED transfer rates of up to 100 MB/s, photos, videos or other memory-intensive files can be saved in top quality and transferred to the PC in seconds using the adapter supplied.
TECHNICAL DATA
Capacity: 32GB
Speed class: Class 10
Read speed: 100 MB/s
Write speed: 40 MB/s
Waterproof, temperature-resistant and shockproof
NOTE
The card is perfectly suited for 24/7 continuous operation in surveillance cameras and dashcams
Important note for MPs from 2021

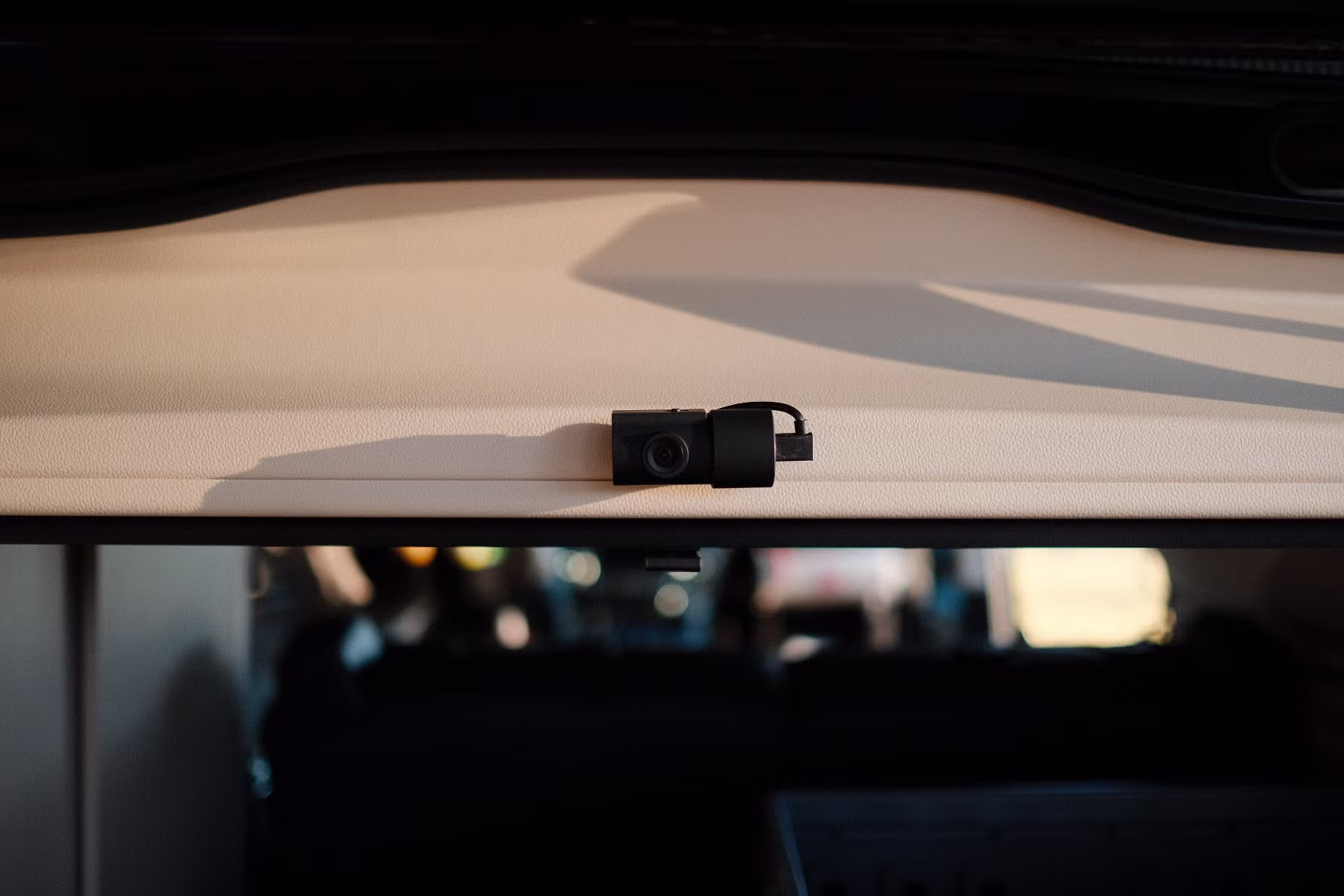

For Marco Polos facelift model from 2021 with MBUX / MBAC, the rear dashcam must be mounted from below, otherwise it will no longer be in the field of vision of the rear window. Westfalia has enlarged the black privacy strip in the rear window of these vehicles. In this case, the roller blind can only be used to a limited extent. The roller blind can only be used when the tailgate is closed. In this case, we recommend the use of a rear window insulation for the Marco Polo.
Technical data
Viewing angle front camera: D:143°
Front camera image sensor: SONY IMX335
Front camera resolution: 2844x1600 pixels (5MP)
Front camera lens: 6G-1R, F1.9
Frame rate front camera: 30 FPS
Rear camera image sensor: AHD GC2053
Rear camera resolution: 1920x1080 pixels (2MP)
Frame rate rear camera: 25 FPS
Image ratio: 16:9 format
Operating temperature: -20° C ~ +70° C
Flash memory: 8 Mbytes

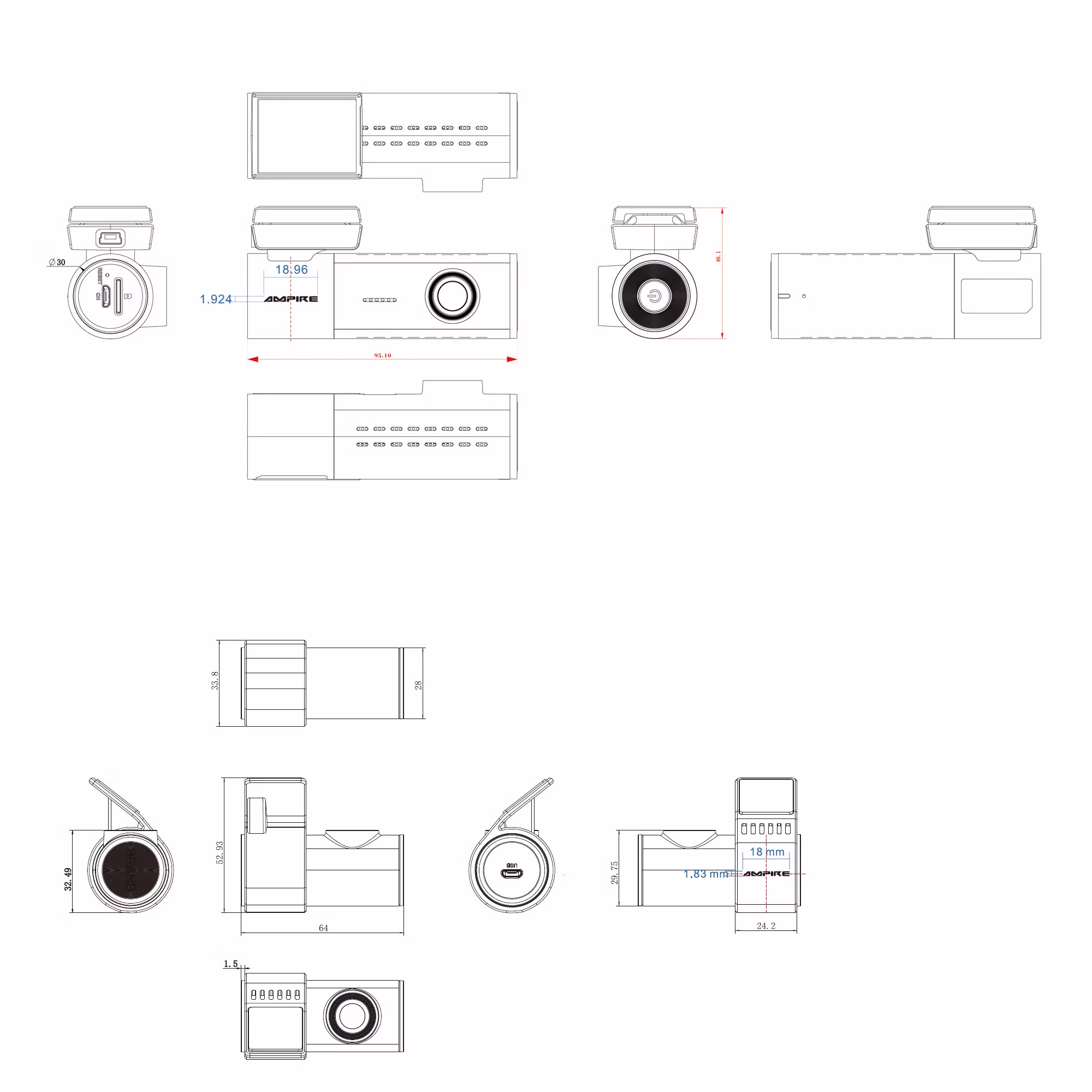

Front dimensions: 36 x 41 x 95 mm (W x H x L)
Rear dimensions: 36 x 37 x 63 mm (W x H x L)
Power consumption 610mA (boot time)
Power consumption 470mA (operation)
Duration until start of recording ~8 sec.

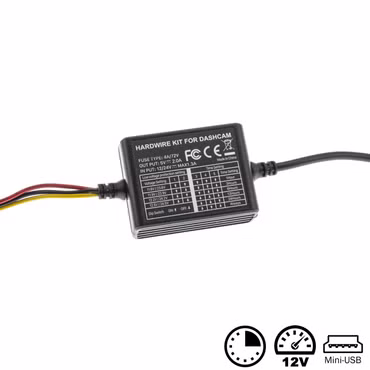

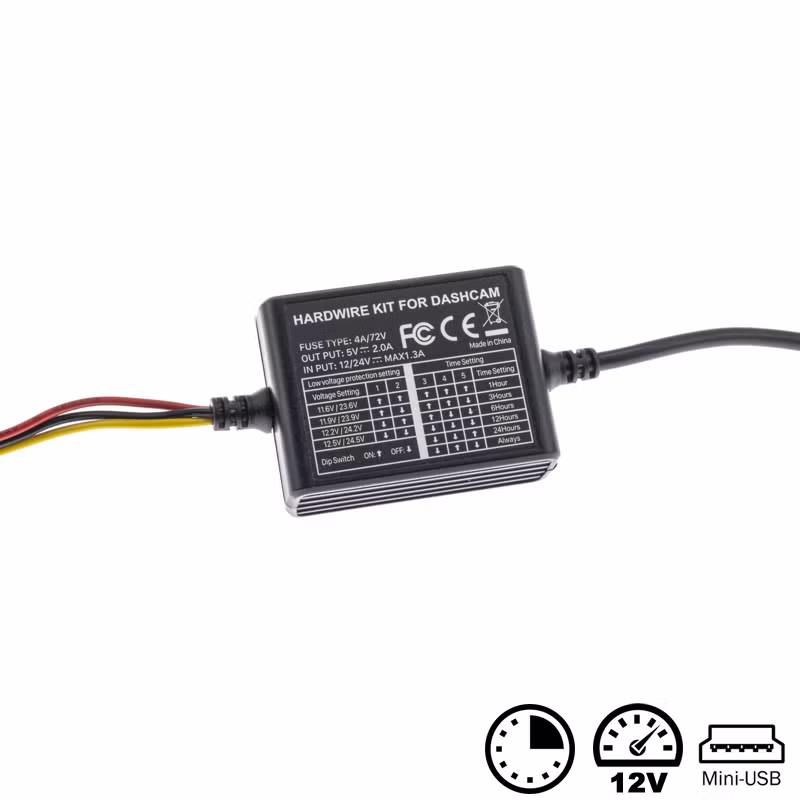

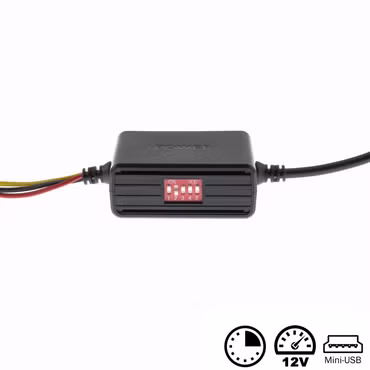

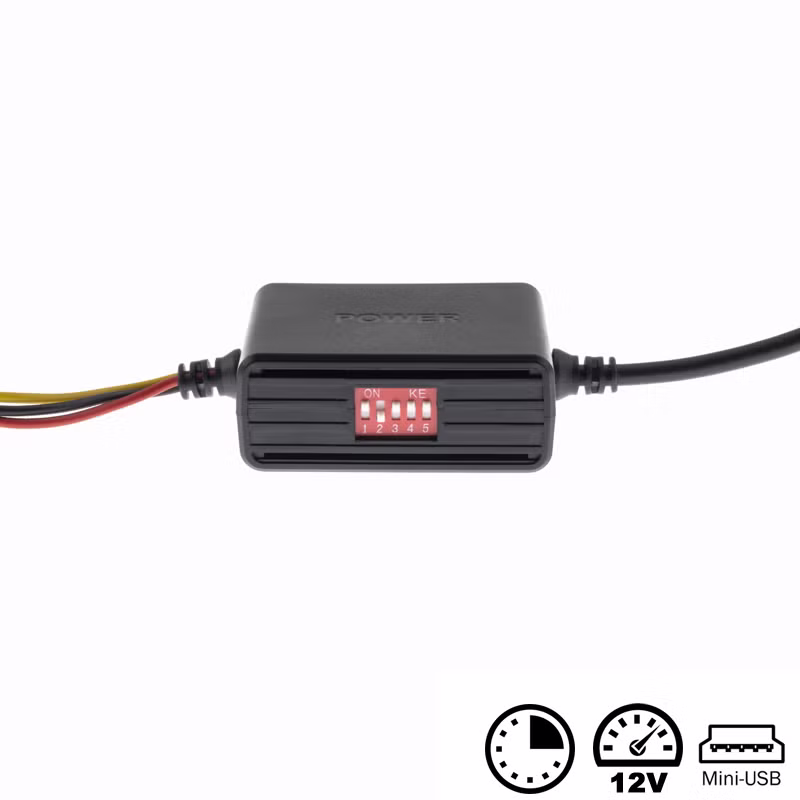

Technical data power supply unit
Adjustable switch-off voltage 11.6/11.9/12.2/12.5 volts (car) or 23.6/23.9/24.2/24.5 volts (lorry)
Adjustable switch-off time after: 1h, 2h, 4h, 6h, 12h, 24h and permanently
Operating voltage 12 or 24 volts DC
Max. Input current 2000mA@12 VDC, 1000mA@24VDC
Output connector MINI-USB
Output voltage 5 Volt, 2A
Dimensions 60 x 26 x 18mm
Storage temperature -20°C to 85°C at 0-90% RH
Working temperature -10°C to 60°C
Fuse 2A/30V
Efficiency 85%
Smartphone App
The following languages are supported by the AMPIRE DC2 App for this dashcam: German, English, Spanish, Chinese, Estonian, Greek, Latvian, Polish, Russian, Slovak, Czech, Ukrainian
PC app
To view the downloaded videos on a PC, we recommend the free VLC video player. With some Windows video players, no sound is output.
https://www.vlc.de/
Legal notice
What is allowed and what is not:
https://www.adac.de/verkehr/recht/verkehrsvorschriften-deutschland/dashcam/
Important note on installation
The GPS antenna integrated in the dashcam requires free reception to the GPS satellites in order to be able to calculate a position or speed. Windscreens with insulating glass have an infrared-reflecting metallic coating. In such vehicles, position the dashcam in the communication window provided for this purpose in most vehicles, which allows GPS reception. You will find more detailed information on this in the car's operating instructions.
Important note for MPs from 2021
For Marco Polos facelift model from 2021 with MBUX / MBAC, the rear dashcam must be mounted from below, otherwise it will no longer be in the field of vision of the rear window. Westfalia has enlarged the black privacy strip in the rear window of these vehicles. In this case, the roller blind can only be used to a limited extent. The roller blind can only be used when the tailgate is closed. In this case, we recommend the use of a rear window insulation for the Marco Polo.
Artikelnummer: 36229
| Model | MB-MP-DC2-Pro-inkl.Einbau |
| Manufacturer | 1sternehotel |
| Content | 1 Installation |
| Weight | 800 g |
| Condition | New |
