The smart 250 watt solar system including installation for Mercedes-Benz Marco Polo, Horizon, Activity W447 & Viano Marco Polo W639 from 2004 onwards
The perfect, almost invisible 250 watt solar system for Mercedes-Benz Marco Polo, Horizon, Activity, Viano Marco Polo. Suitable for car washes and underground car parks! Fully assembled incl. accessories and smartphone app.
Product video
Description
Self-sufficient solar power system, compactly designed for your Mercedes-Benz Marco Polo with pop-up roof, suitable for Marco Polos with electric pop-up roof or manual pop-up roof, with or without sunroof.
Our solar system for the Mercedes-Benz Marco Polo is also suitable for models from 2020 with Mercedes-Benz MBUX and MBAC system. Our system works independently of the MBAC system. Voltage, current, charge, etc. are displayed and logged in the solar charge controller app, just like in vehicles without the Mercedes-Benz MBAC system. In the MBAC system, you can then see the battery voltage and the capacity / charge of the starter and body battery as usual.
As an option to our 250 watt solar system for the Mercedes-Benz Marco Polo, we recommend installing a lithium battery and a charging booster, so that you are travelling with significantly more capacity and the body battery is always charged while driving until it is full.
With the solar system, you are self-sufficient when travelling in summer and winter. The solar system is designed so that the refrigerator can always run at level 2 or 3 and you can charge various devices via the 12-volt and USB sockets, provided your Marco Polo is parked outdoors. We work with a voltage of 70 volts, which makes the system highly efficient and minimises losses along the cable routes. The solar system for the Marco Polo is rather oversized, even if a panel is covered with a roof box, surfboard or sup board in summer, the body battery of the Mercedes-Benz Marco Polo is fully charged at least once a day. When the body battery is fully charged, the solar charge controller also charges the starter battery and the buffer battery under the passenger seat in the Mercedes-Benz Marco Polo.
In practice, all 3 batteries are already fully charged in the morning in summer.
Features

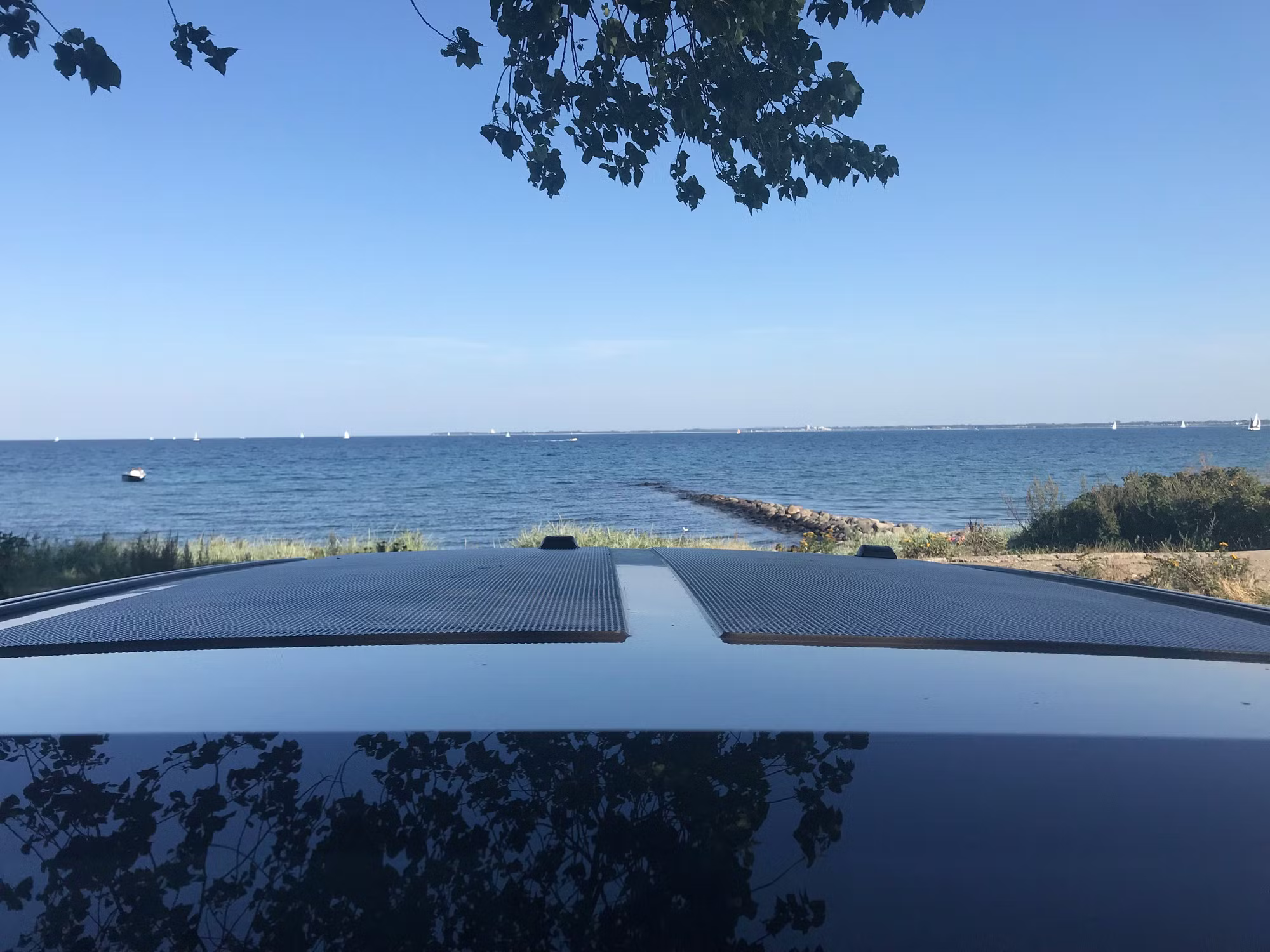

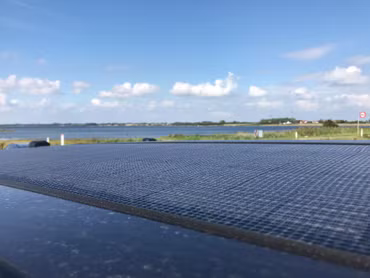

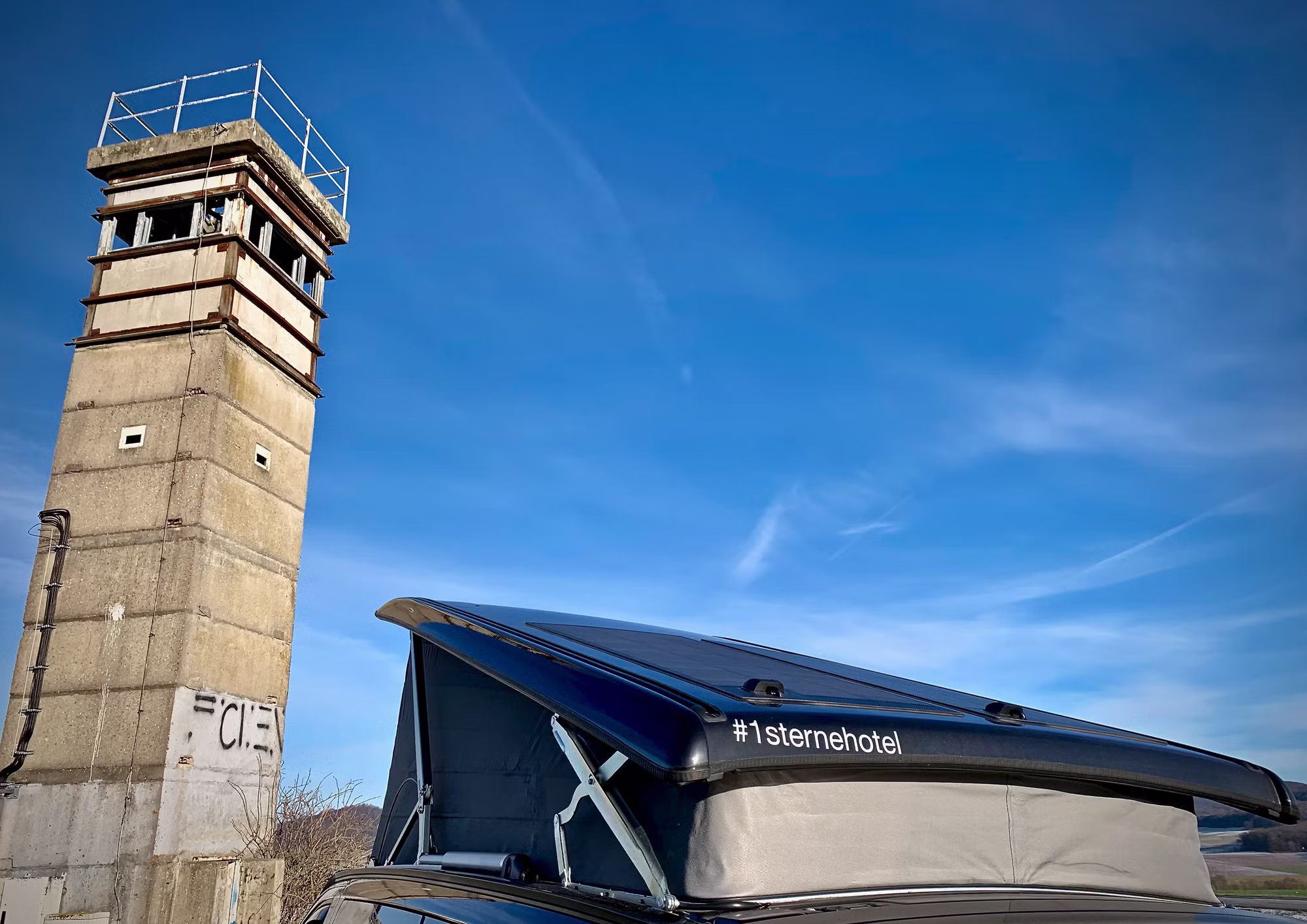

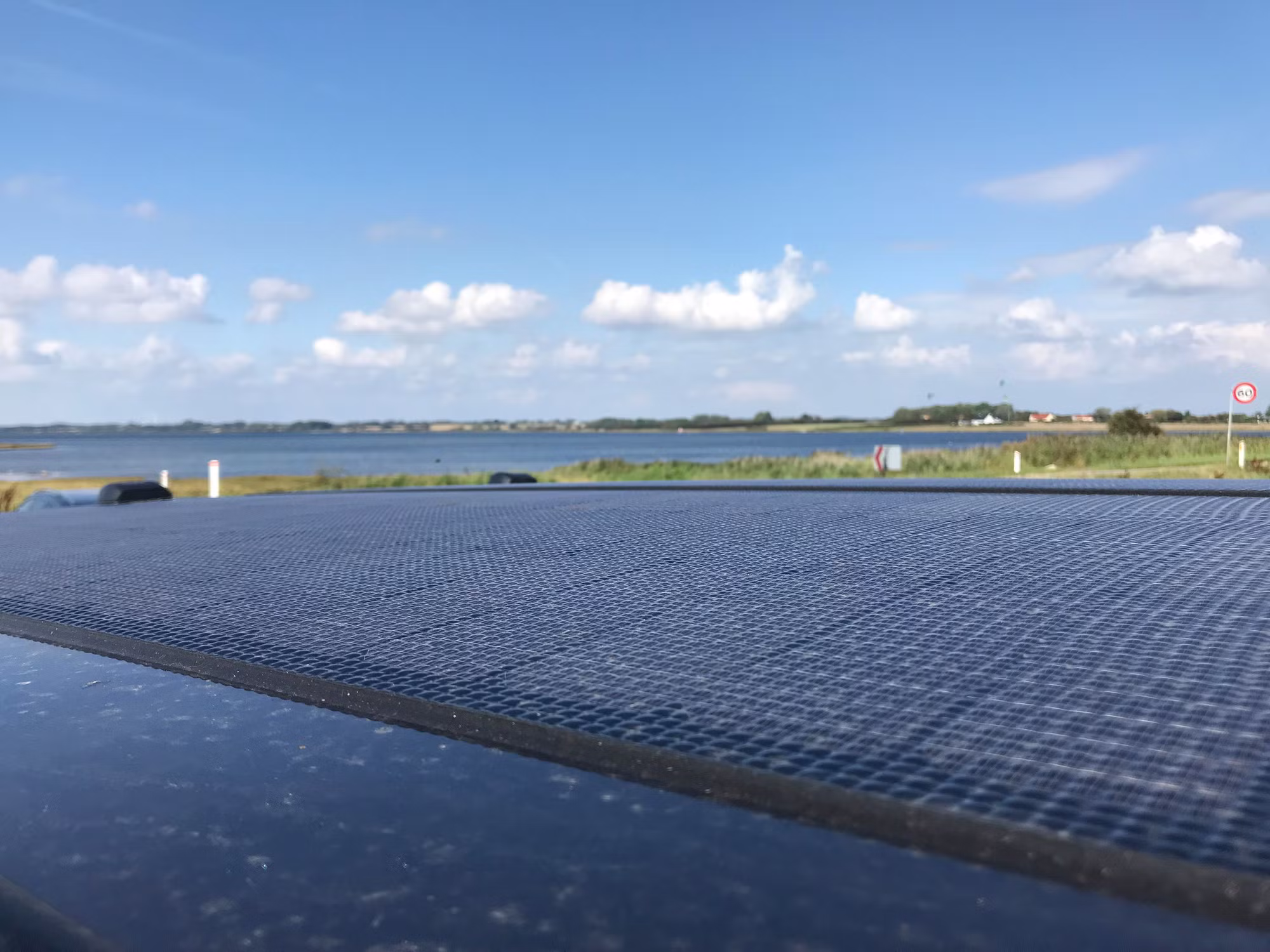

- Two solar panels, each with 125 Wp output (total 250 watts), are bonded directly to the Marco Polo pop-up roof and grouted after drying, see photos.
- The height of the Mercedes-Benz Marco Polo is not increased. The solar panels have a thickness of only 4 mm including adhesive and silicone, so there are no restrictions in the garage, underground car park or multi-storey car park.
- The use of car washes is no problem with the solar system on your Mercedes-Benz Marco Polo.

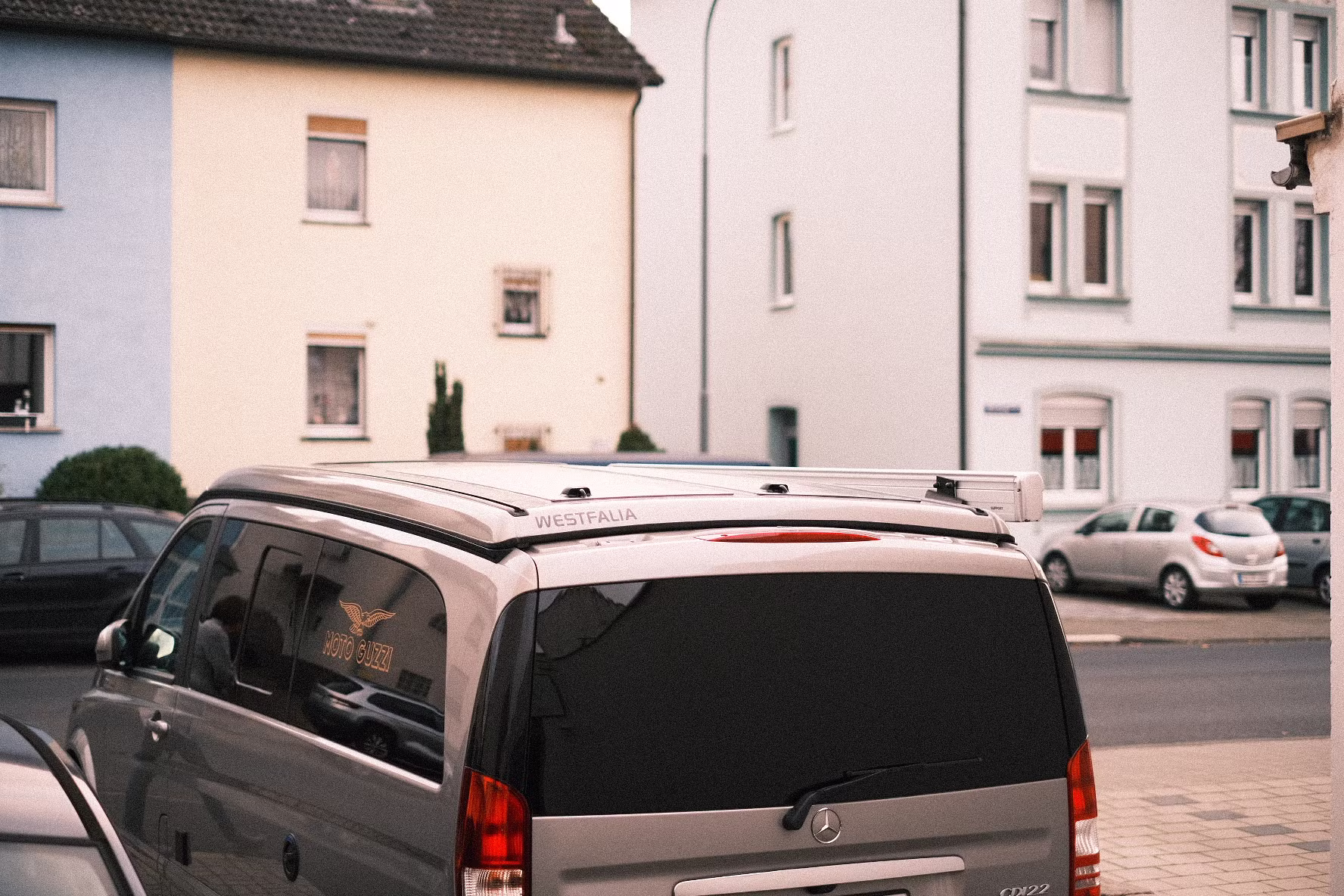

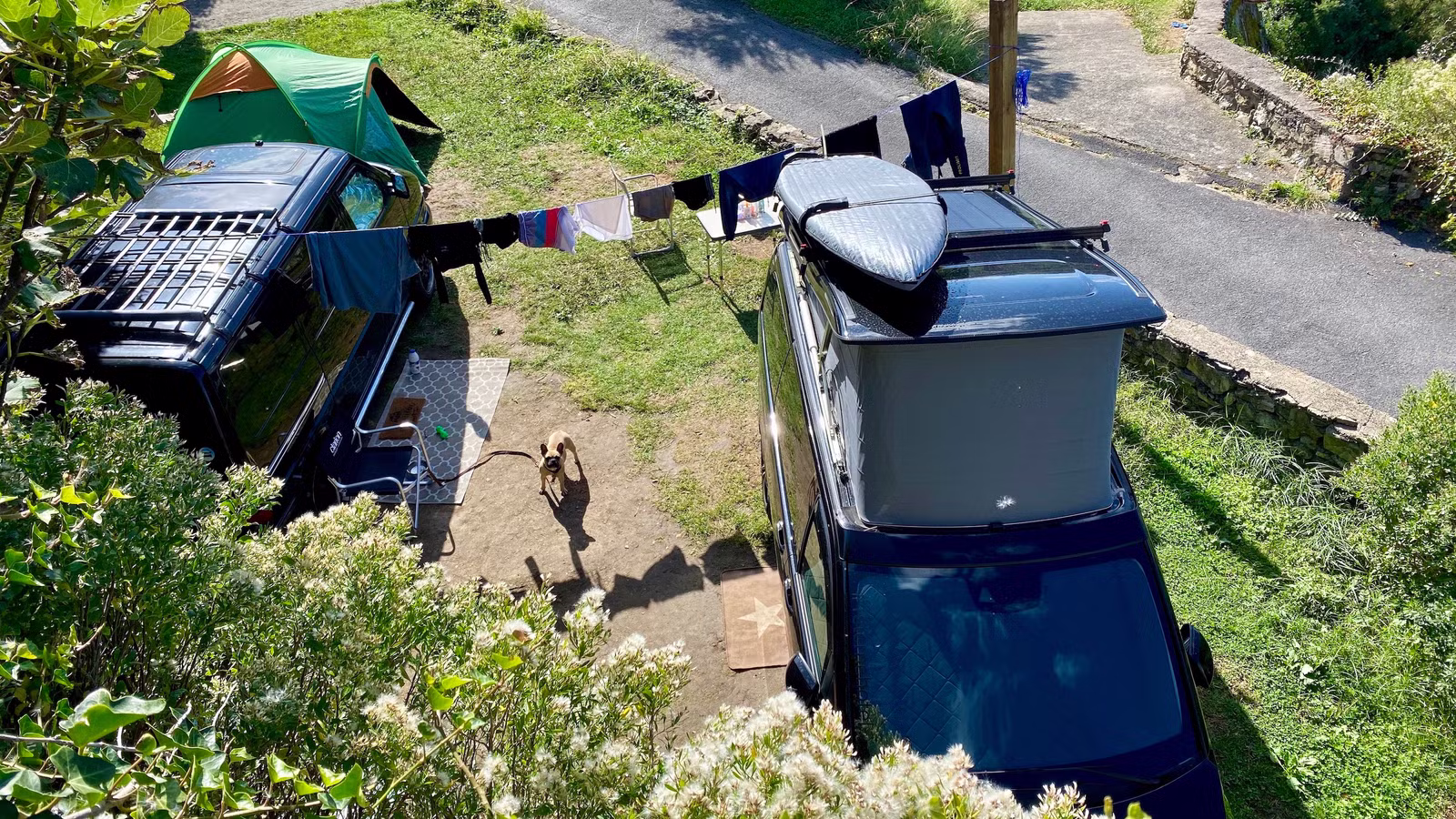

- Roof racks, whether Thule, Westfalia or others, can still be mounted on your Mercedes-Benz Marco Polo pop-top roof.

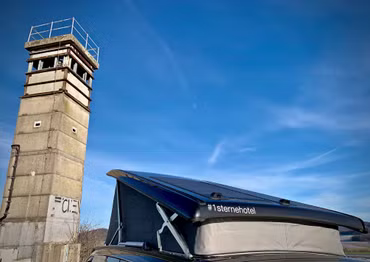

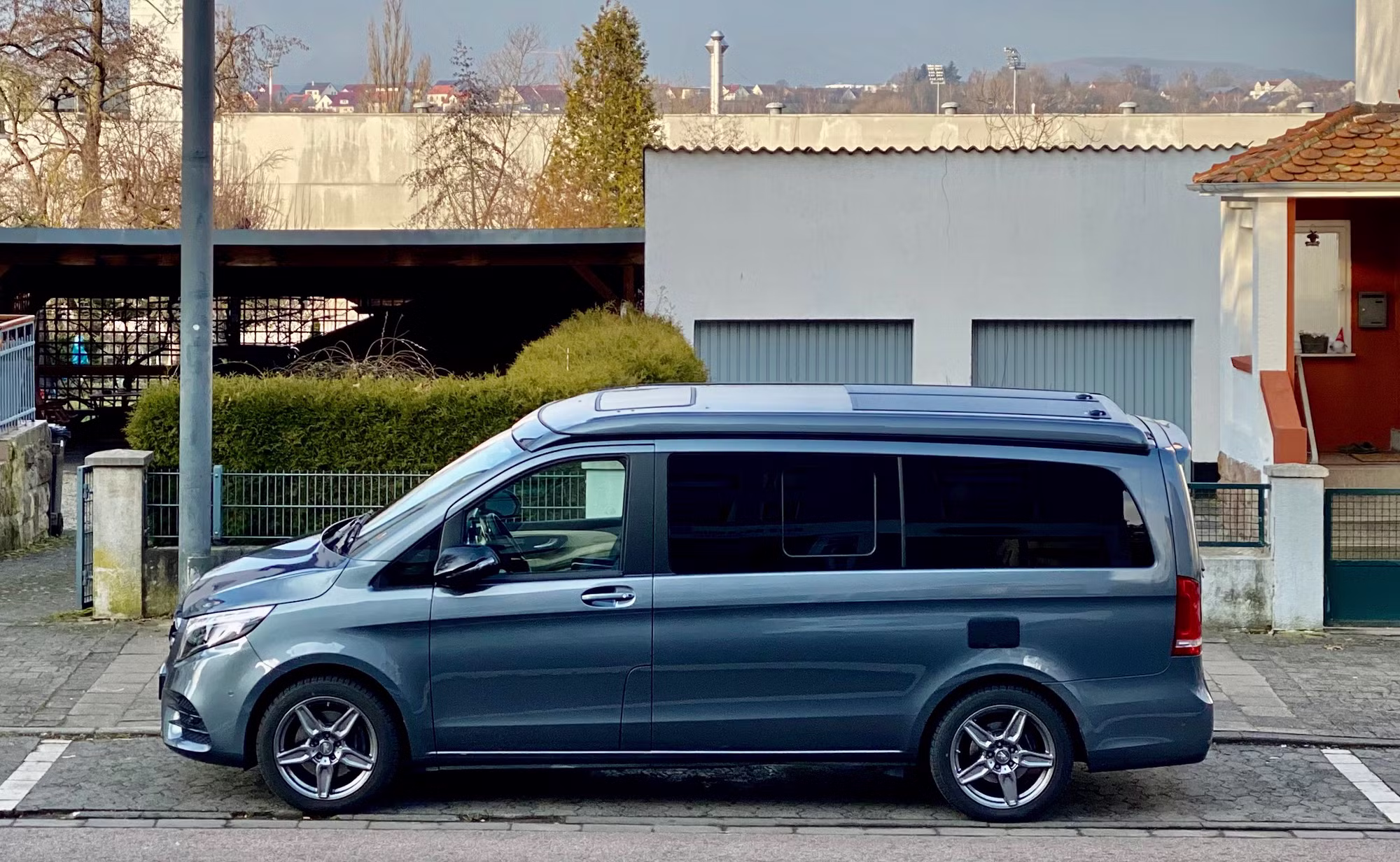

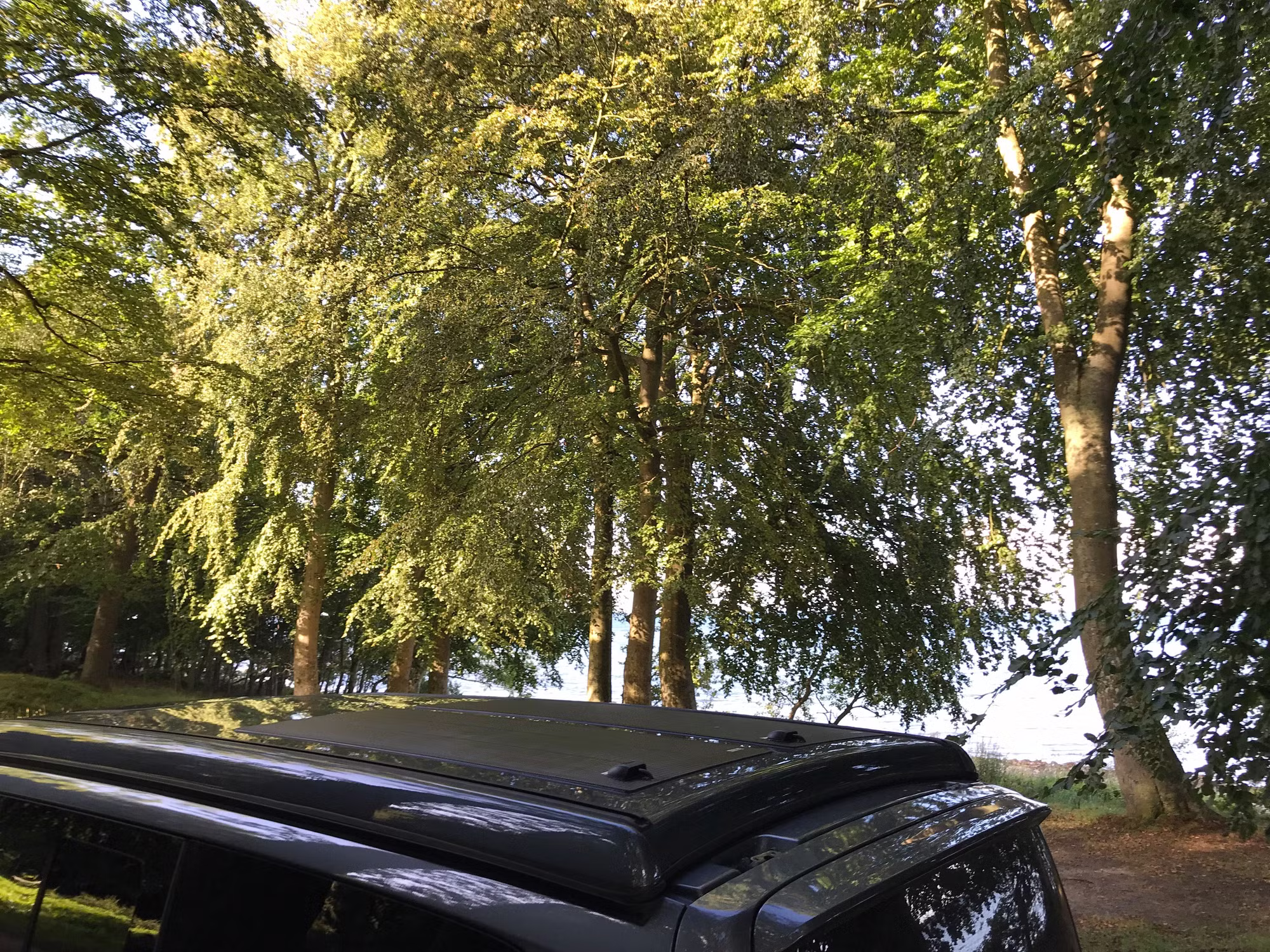

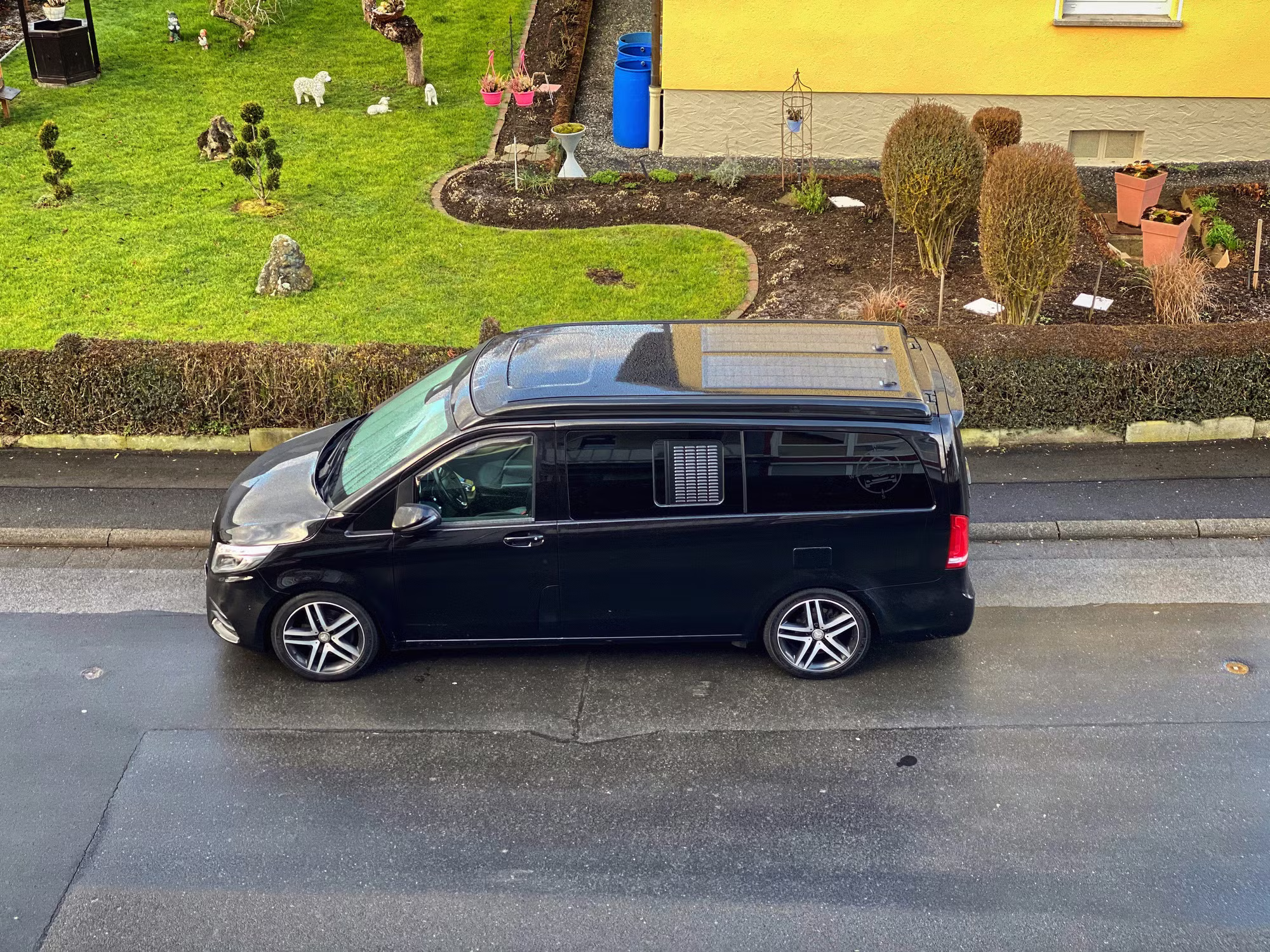

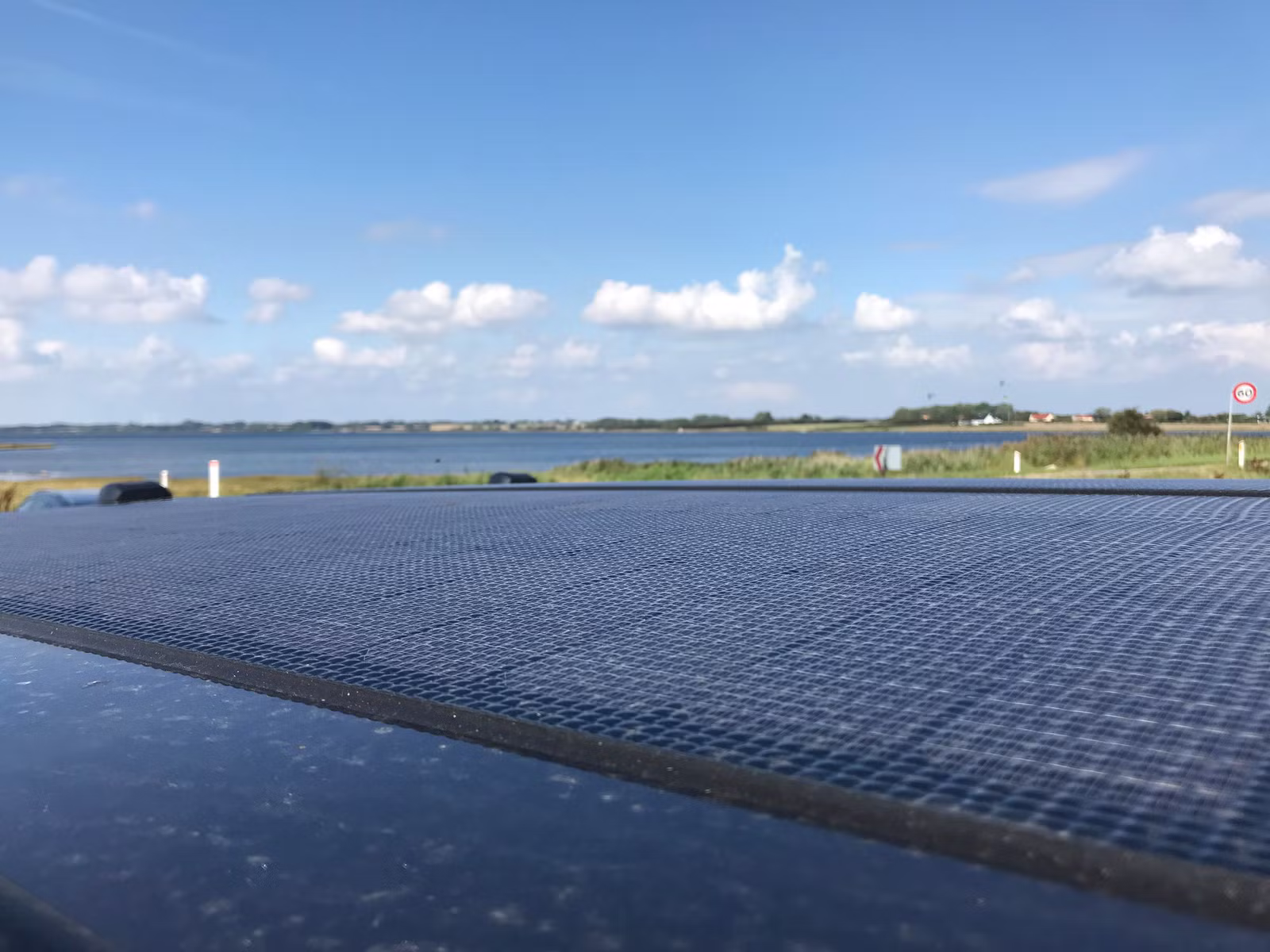

- The solar panels are almost invisible around the Mercedes-Benz Marco Polo, see photos.

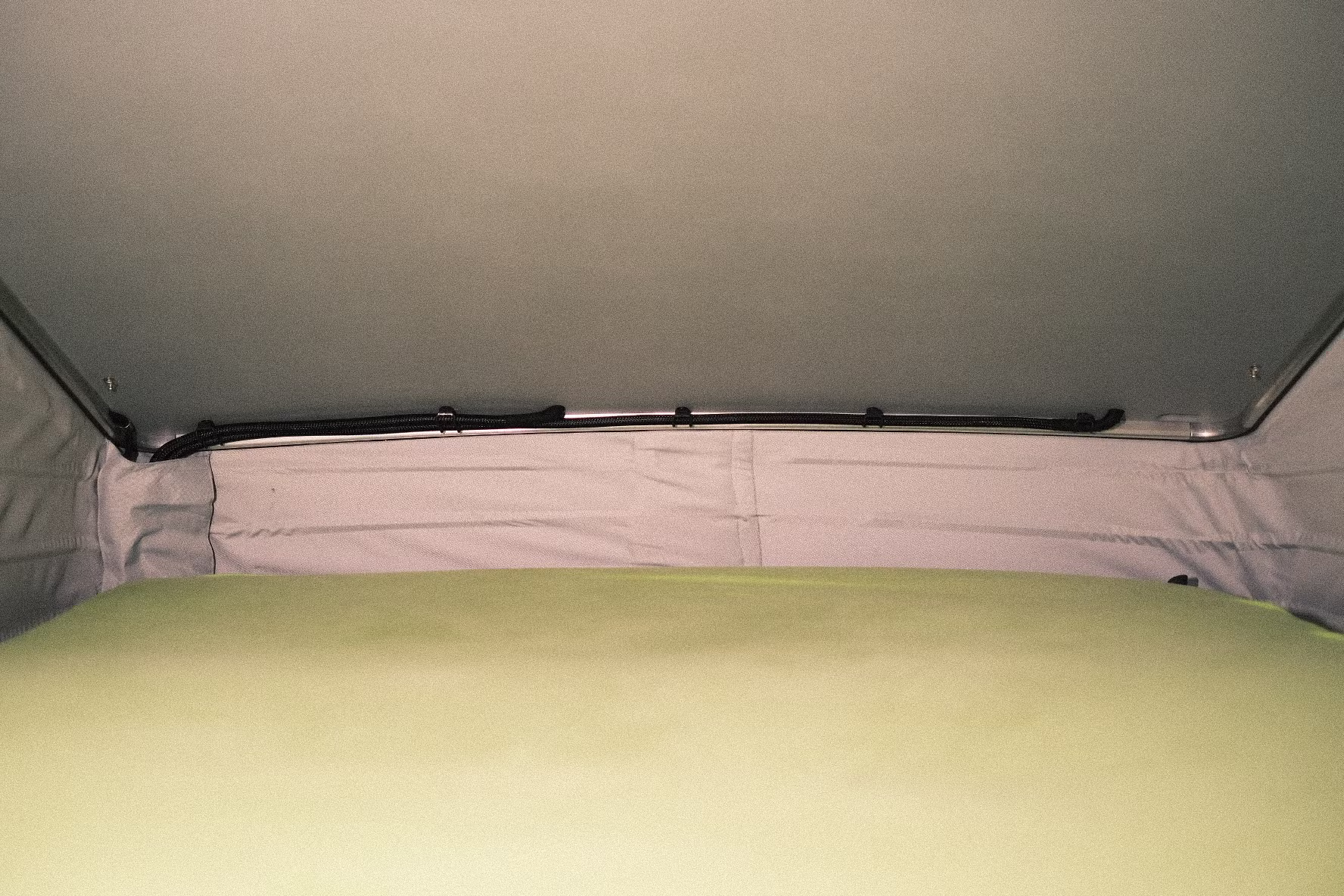

- The cable connection from the solar panel to the interior of the Mercedes-Benz Marco Polo is made via 2 holes in the pop-up roof, the cables are laid flexibly and visible from the bed, but do not interfere with sleeping or lowering the roof, see photos.
- The Solar Bluetooth charge controller with MPP technology optimises the power output of the solar modules and protects the batteries (battery life cycle, 3-stage charging).
- By positioning the roof of your Mercedes-Benz Marco Polo, optimum conditions are created to maximise the yield of solar energy.

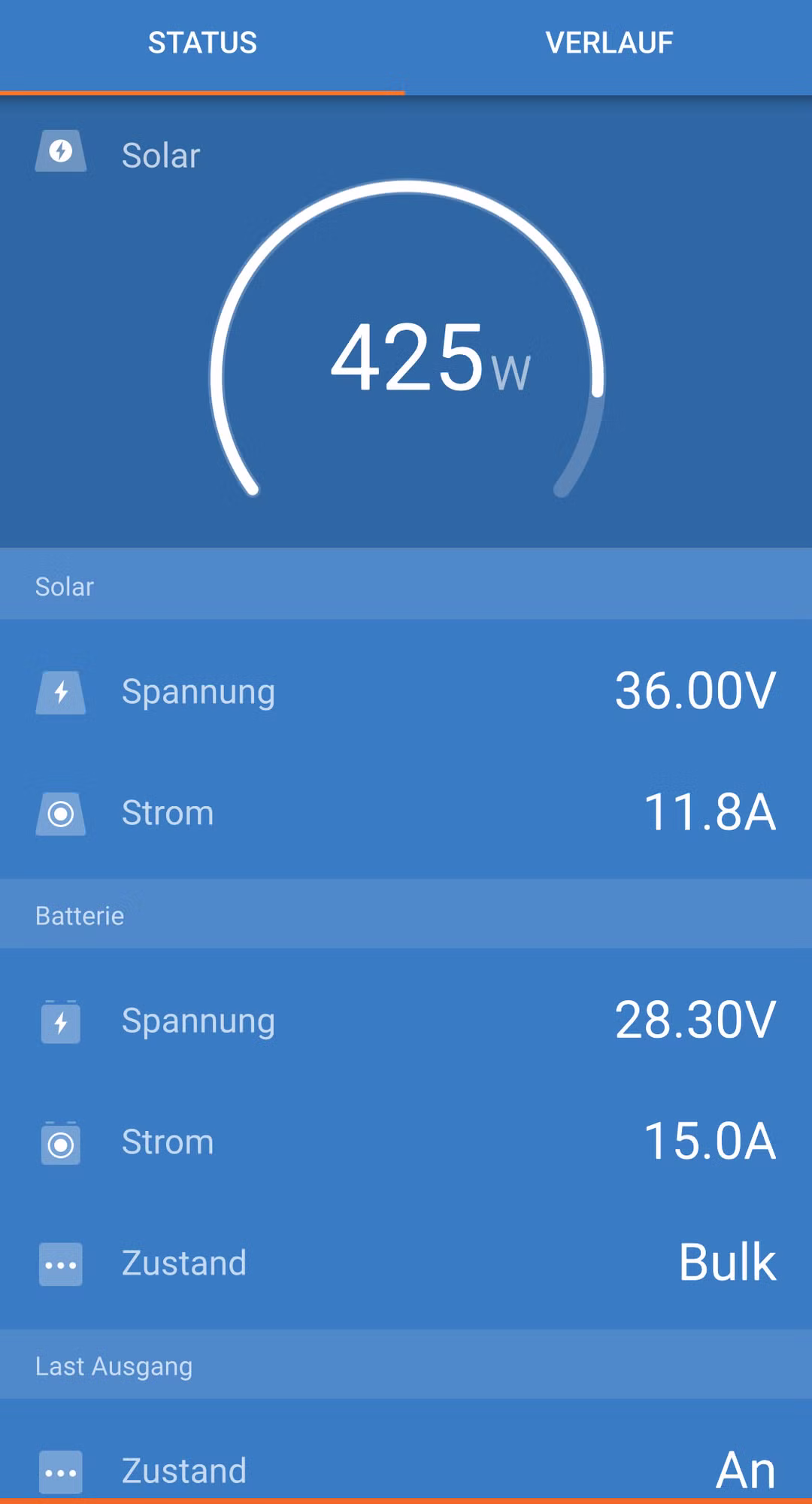

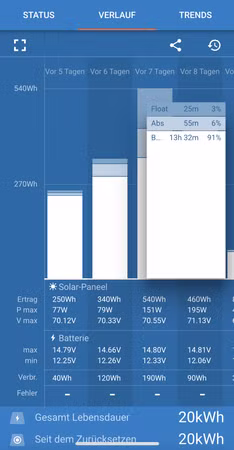

- A smartphone app (Apple & Android) is used to monitor and adjust the performance of the solar system, so no space is wasted in the Marco Polo for solar display monitors.
- Due to its low weight, the solar system is suitable for manual and automatic pop-up roofs.
- The solar system does not generate any wind noise, even when travelling at speeds of up to 200 km/h.
- All components are assembled by us and tested many times.
- The solar system charges the body battery of the Mercedes-Benz Marco Polo, when this has reached a sufficient voltage value, the starter battery and the buffer battery of the Mercedes-Benz Marco Polo are additionally charged with 3A.
- This solar system for Mercedes-Benz Marco Polo is only offered including installation by our workshop.
- We need your vehicle for three working days for this installation in order to dry the adhesive and the silicone and sealing compound joints.
- Please deliver your Mercedes-Benz Marco Polo freshly washed and dried to ensure that the roof only needs to be degreased.
- Compatible with Mercedes-Benz Marco Polo / Horizon / Activity / Viano Marco Polo from 2004 onwards
Accessories
Product package
Details
Two solar modules
Technical data | |
---|---|
Module type | 24V module |
Nominal power (Pmpp) | 125 W |
Max. Daily yield (summer) | 500 Wh/d |
Short-circuit current (Isc) | 3,75 A |
Open circuit voltage (Uoc) | 40,50 V |
Voltage (Umpp) | 35,00 V |
Current (Impp) | 3,39 A |
Cell efficiency | >20% |
Number of cells | 62 |
Junction box | IP 65 |
Dimensions | 1250 x 520 x 4 mm |
weight | 3.9 kg |

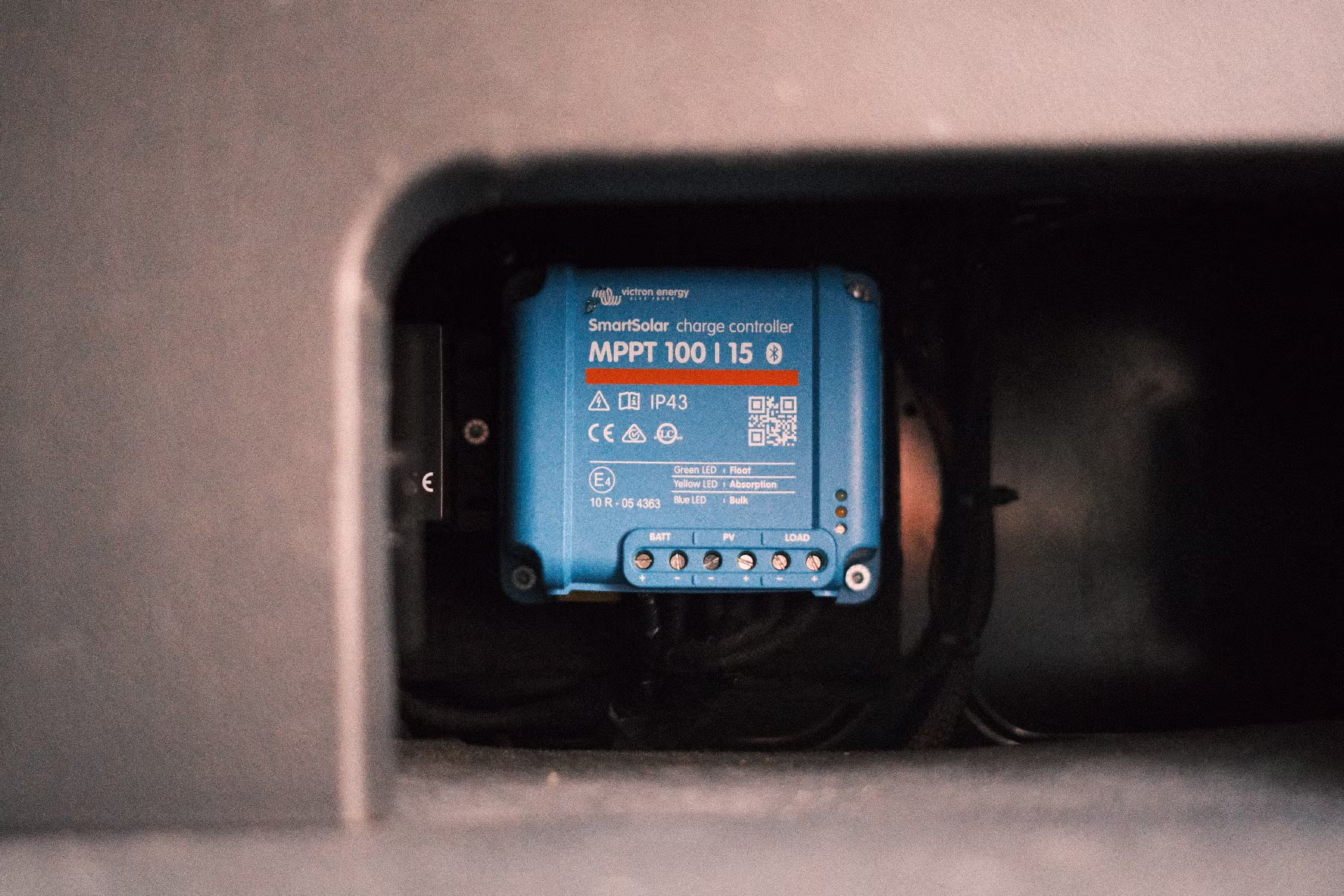

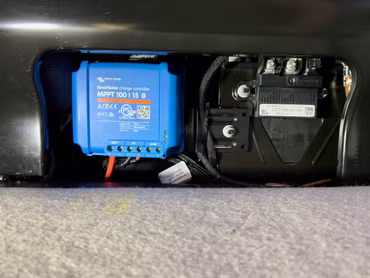

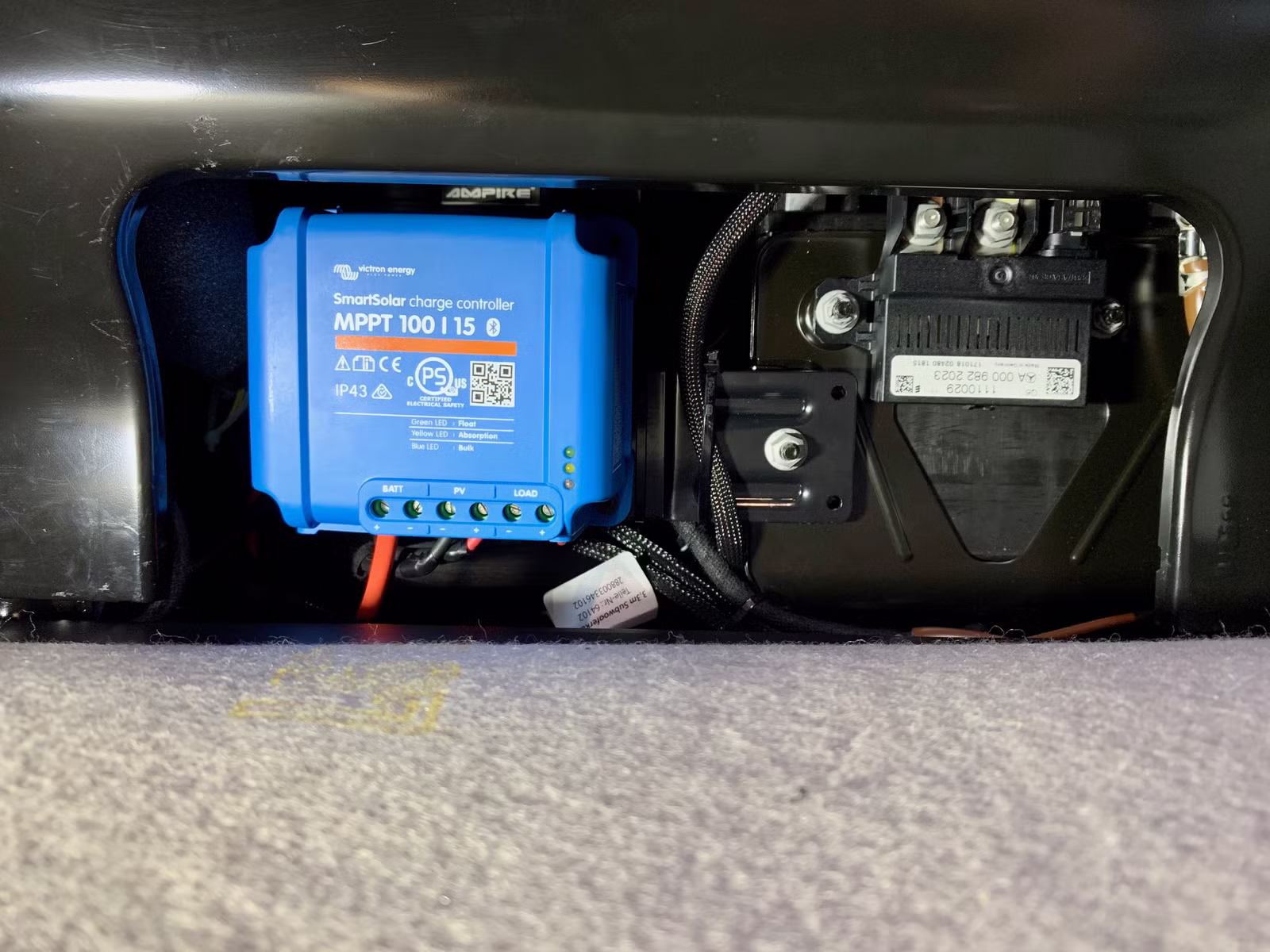

Smartphone solar charge controller
Victron SmartSolar MPPT 100/20 up to 48 V
- Bluetooth Smart integrated: enables monitoring with a smartphone or other Bluetooth-enabled device
- Max. open circuit voltage of the solar modules: 100 V
- Nominal charging current 20 A
- Automatic voltage detection: suitable for 12 V, 24 V or 48 V systems
- Ultra-fast maximum power point tracking (MPPT)
- Max. PV power: 290 W at 12 V - 580 W at 24 V - 1160 W at 48 V
Trickle charger for starter & buffer battery
The standby charger is used to automatically recharge and maintain the charge of the starter battery and the additional battery (backup battery).
Wiring and installation
This solar system, developed by us for your Mercedes-Benz Marco Polo, is offered and installed including all required and configured power cables, cable brackets, fastening material (cable ties, adhesive, silicone), fuses, solar panels, charge controller. You don't need to bring anything except your freshly washed Mercedes-Benz Marco Polo.
