Watt-hour HV Marine EFX solar module 125Wp, high efficiency, very robust and walkable

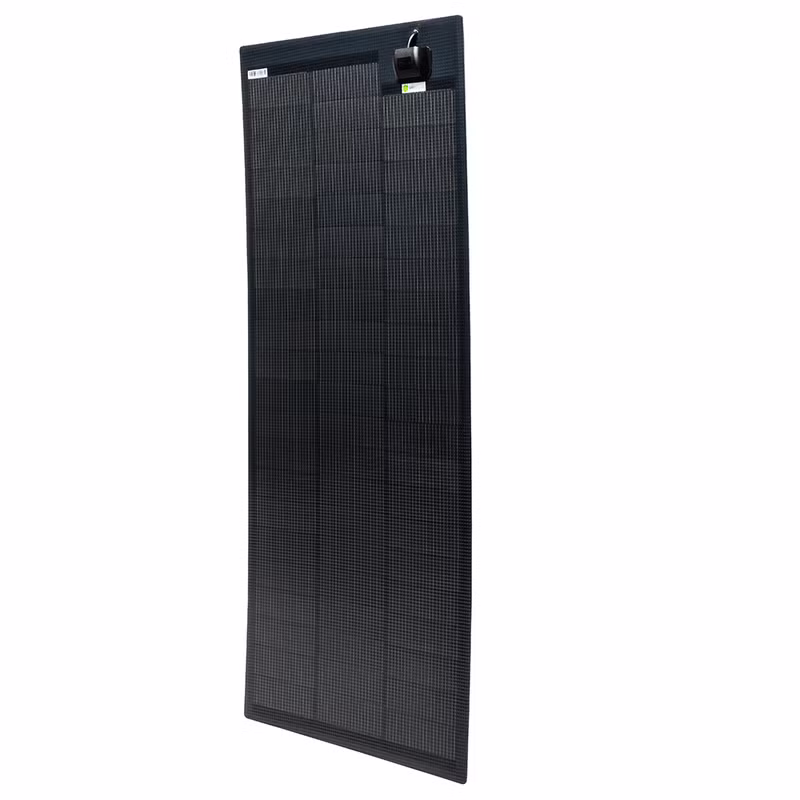

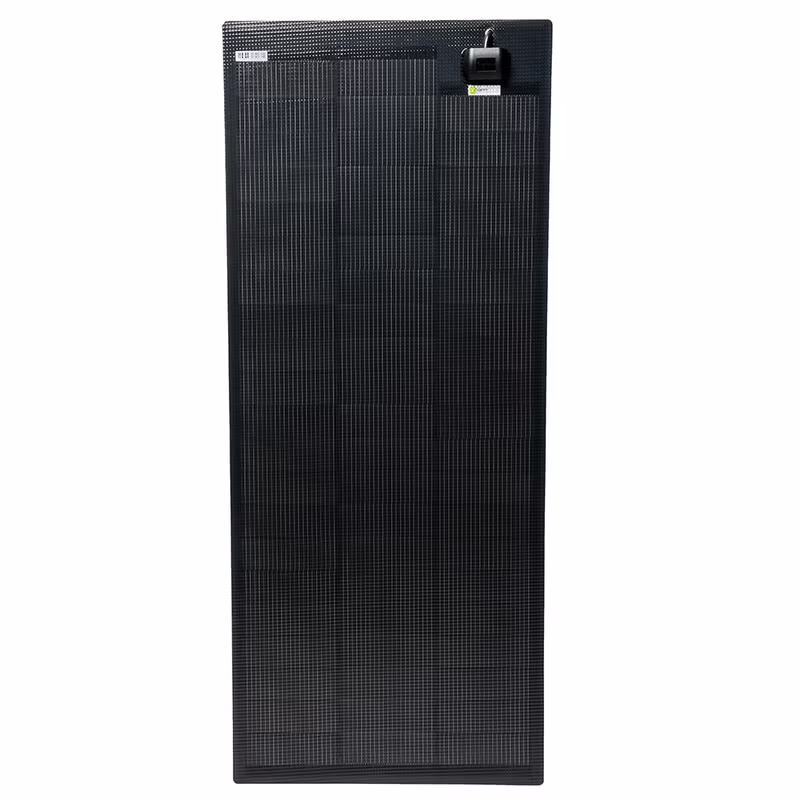

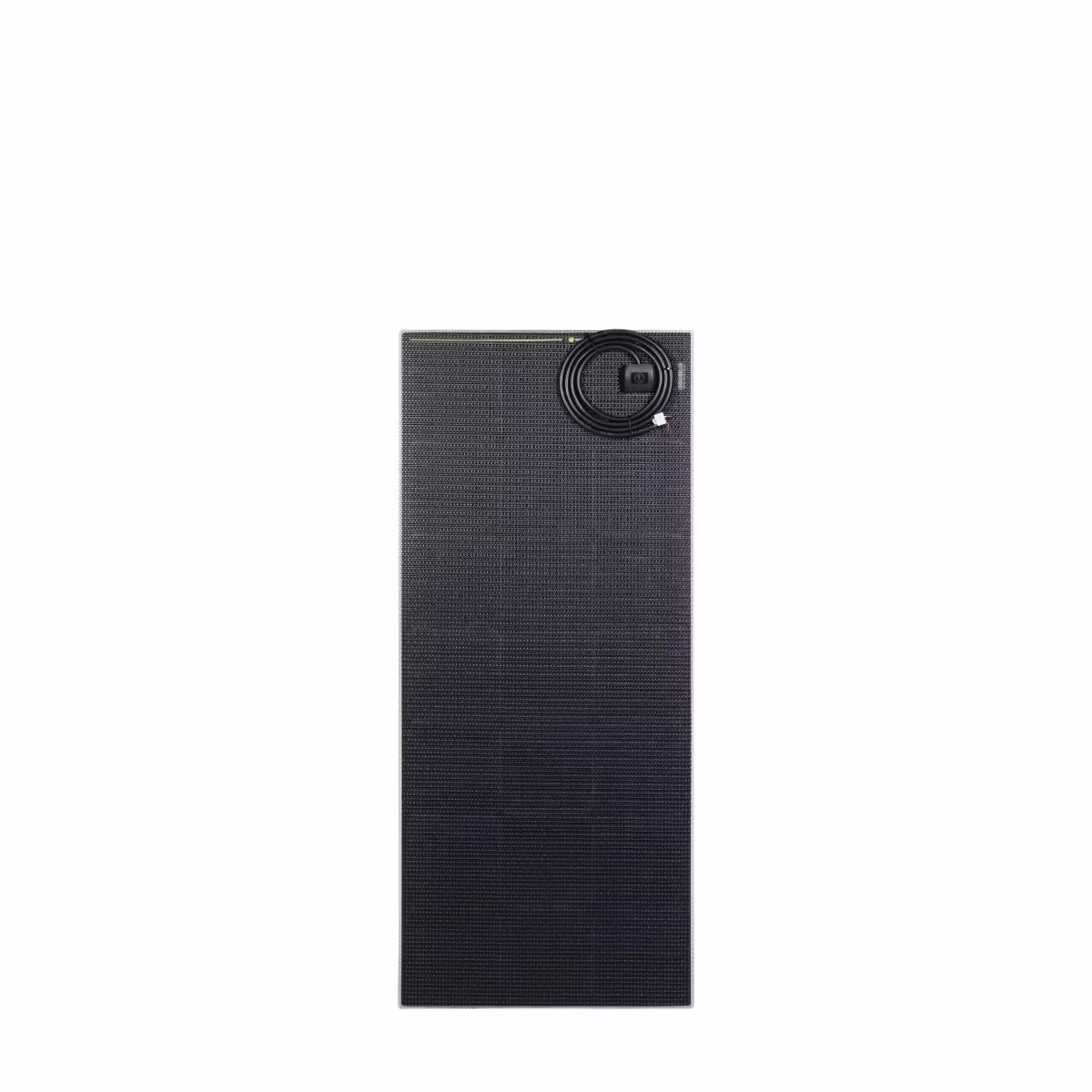

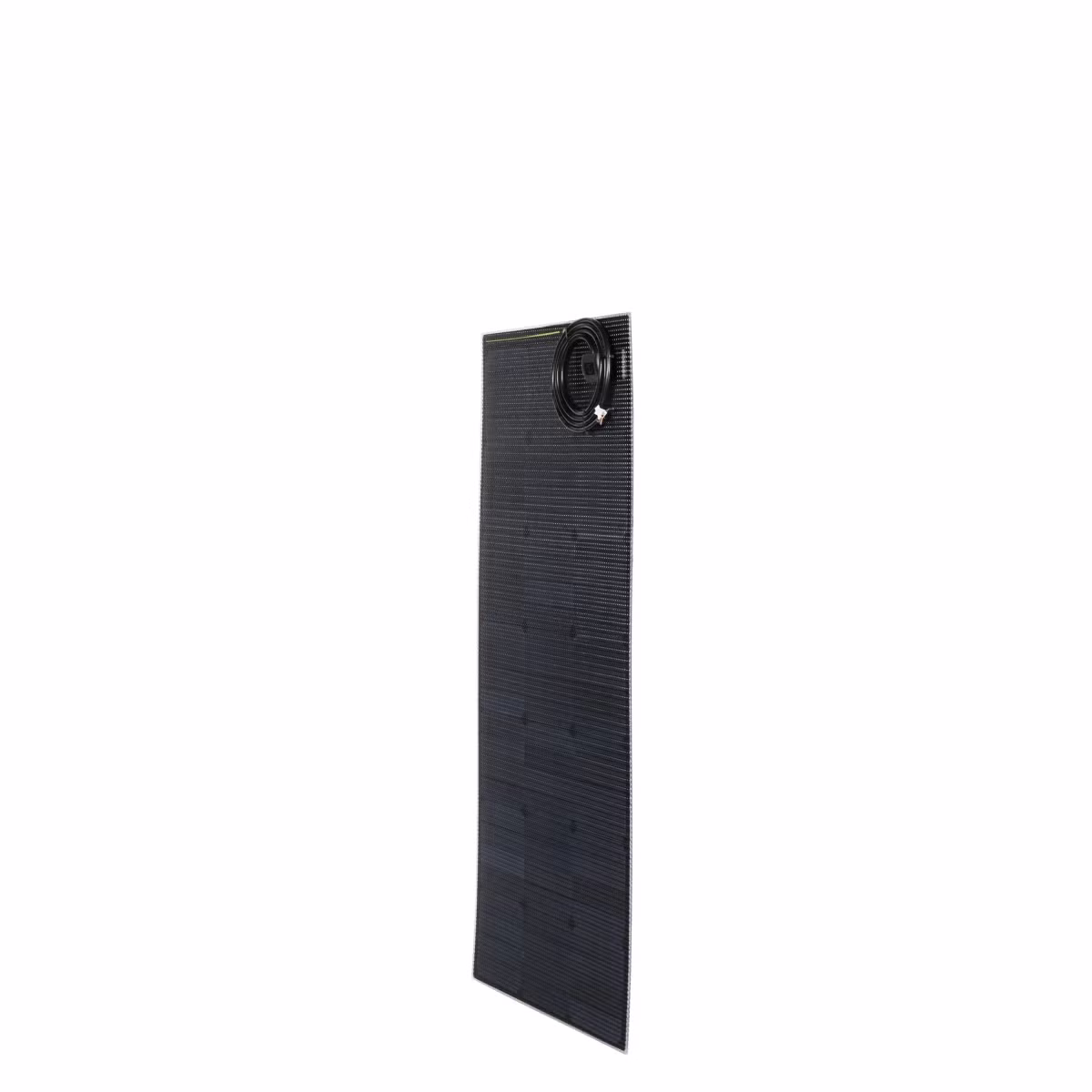

Watt-hour WS125EFX High Voltage Marine Solar Module.
Bulky goods: Delivery may take longer.
Semi-flexible high-end solar module with integrated aluminium plate - perfect for demanding applications
Thanks to their flexibility, WATTSTUNDE® solar modules adapt to any curved roof surface and are therefore suitable for a wide range of applications in motorhomes and, in particular, sailing boats and yachts.
The integrated aluminium plate gives the module the necessary stability to ensure a long service life even in extreme applications such as marine applications.
Numerous application possibilities
The Premium EFX solar modules have been specially developed for use in the marine sector. However, the modules are also increasingly being used in numerous applications outside the marine sector. The solar modules are frequently installed and used in self-sufficient battery applications such as motorhomes, garden sheds, camping, stand-alone systems and all off-grid systems.
Innovative ActiveWire solar cells
The new ActiveWire technology shortens the distances between the conductor paths of the solar cells, thus minimising electrical losses and increasing the current flow. If a cell breakage occurs, the effect remains localised. This innovative conductor network with 19 busbars (conventional mono modules have just 5 busbars) guarantees a high level of module reliability. Due to the thinner wires, more light is also captured than with conventional surface contacts and partial shading is minimised. This design maximises the energy yield - even in weak and diffuse lighting conditions. Thanks to the integrated bypass diodes in the junction box, the module can continue to produce electricity even when shaded or in low light conditions.
A high light yield combined with low installation heights and accessibility make these modules unique!
Maximum stability - ideal for use in the marine sector
The integrated aluminium plate ensures that the module is extremely stable in order to meet the extreme requirements of marine and outdoor applications. The modules can be used optimally on uneven surfaces and rounded levels of a boat or motorhome. The EFX solar modules can also be walked on when mounted on solid ground. Weight savings of up to 80% are possible compared to framed solar modules. Due to our high demands on the quality of the solar modules, we monitor every step - from cell production and component assembly to the finished product.
The high-quality construction makes the module resistant to seawater. Top quality for professional applications!
Special features at a glance:
- 125 watt HV solar module
- High efficiency of over 20%
- High-performance ActiveWire solar cells
- Improved current flow due to unique 19 busbar mesh design
- Greater stability thanks to integrated aluminium plate
- 80% less weight than conventional solar modules

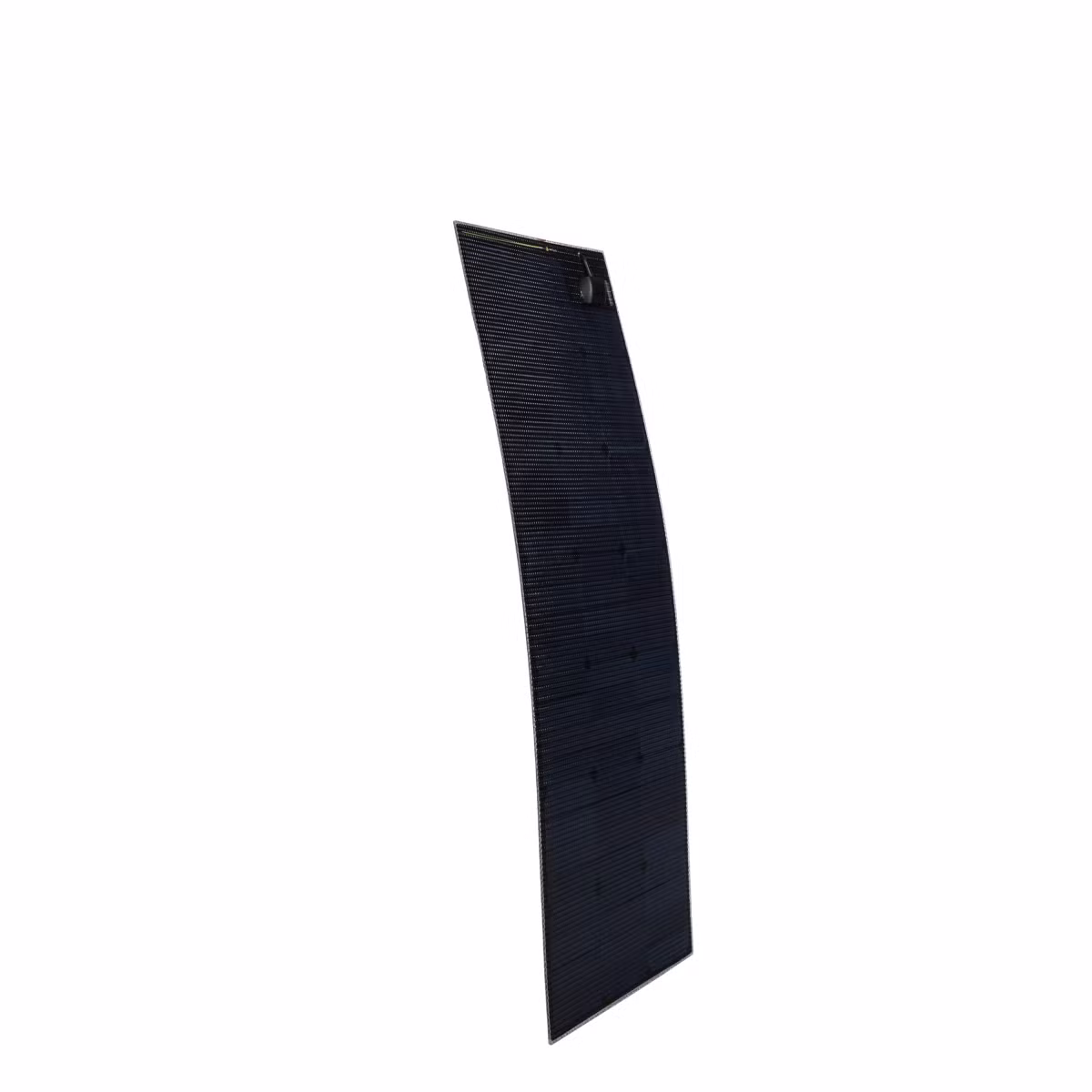

- Semi-flexible up to 10%

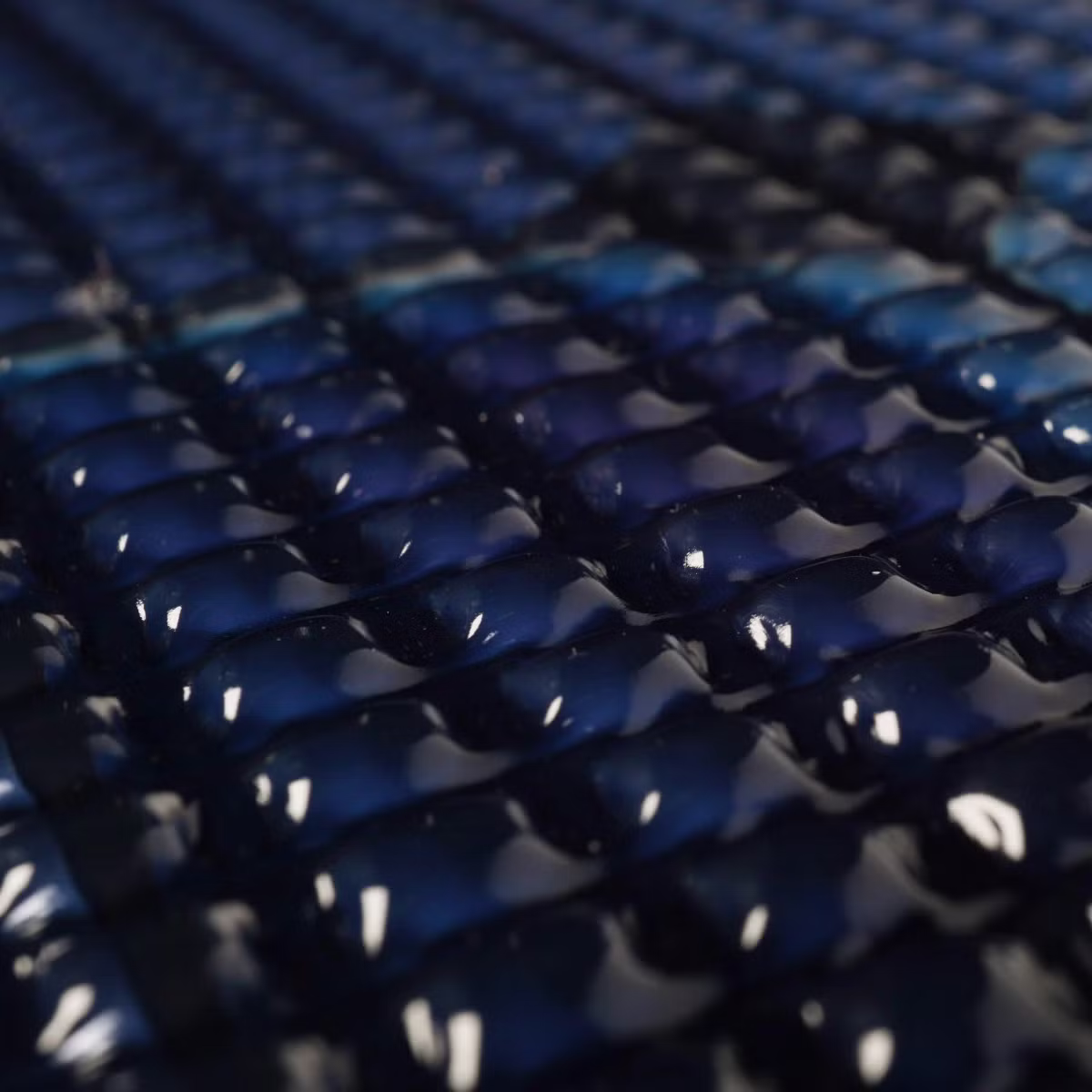

- ETFE coating with high elasticity and durability
- Can be walked on after full-surface bonding to a solid substrate

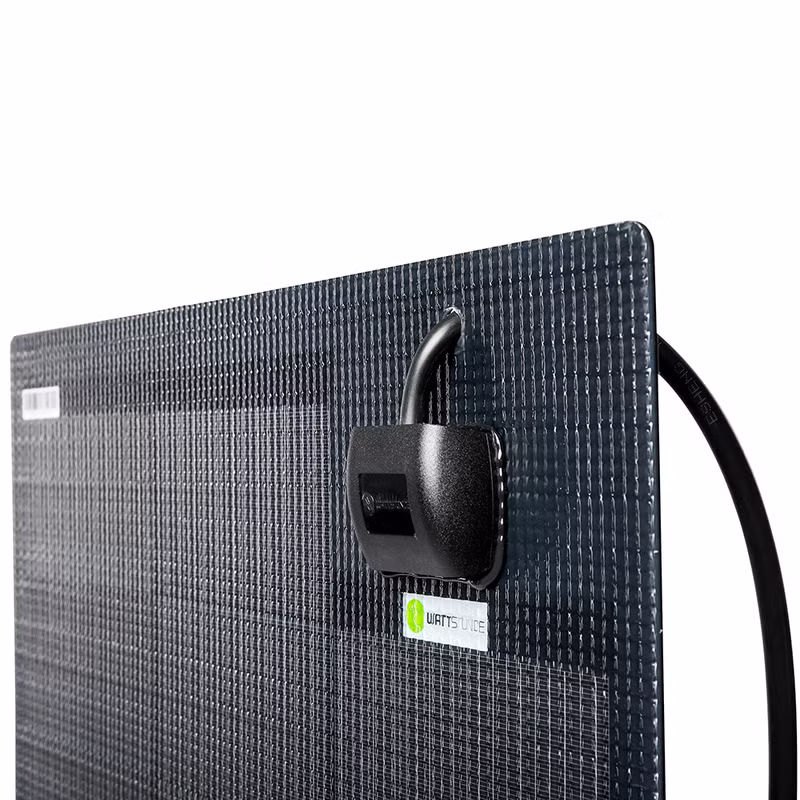

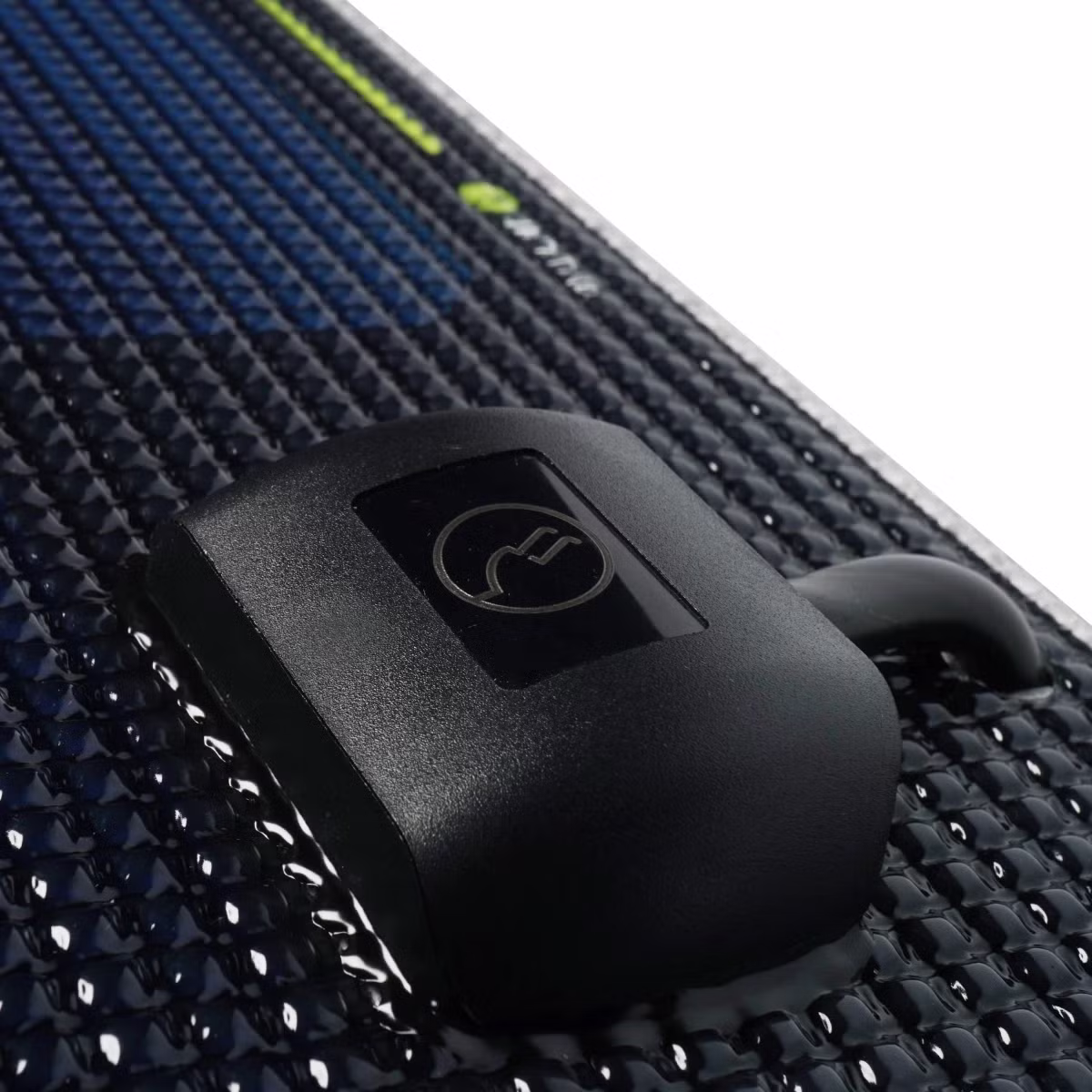

- Junction box with IP65: seawater-resistant, perfect for maritime use
- Cable feed-through also possible downwards (suitable hole is prepared)
- Connection cable 2 metres

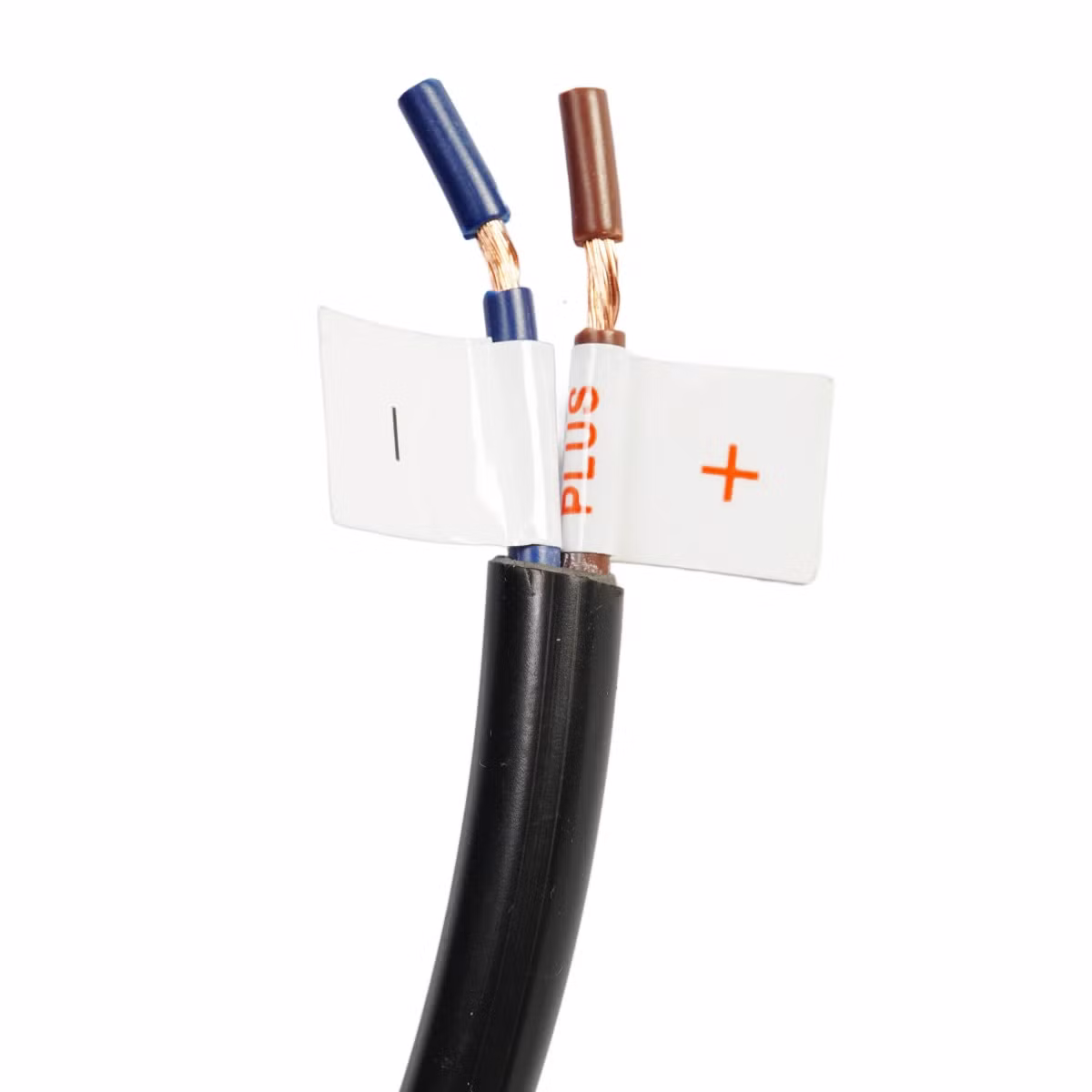

The connection cables are deliberately designed without MC4 plugs.
The choice is yours: the loose cable ends can be connected either below deck or directly on the roof. We recommend using our practical connection box.

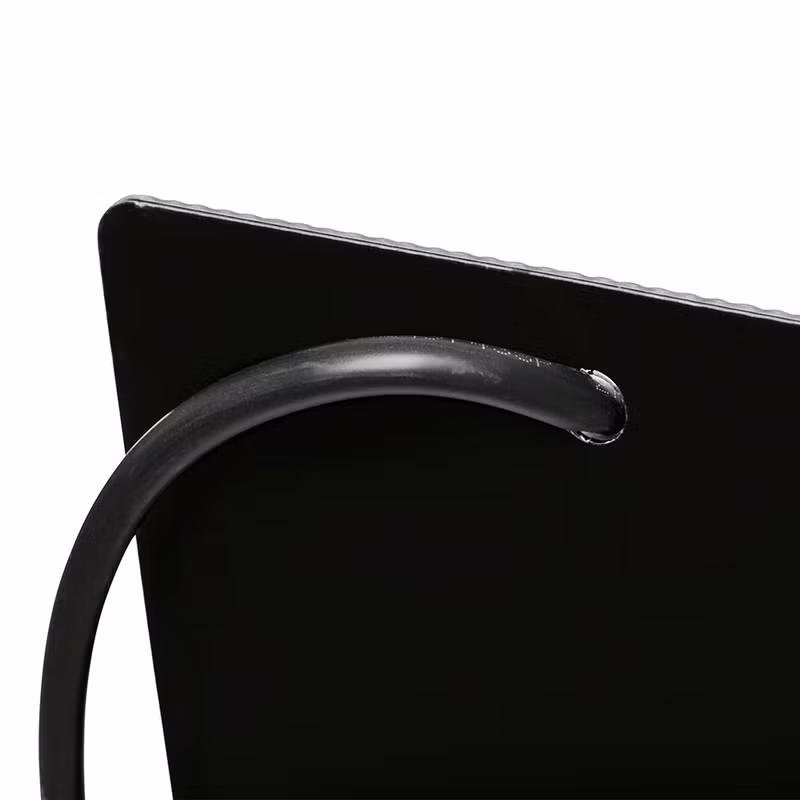

The highlight: the cable feed-through can be made directly through the carrier plate. A corresponding cable bushing is already prepared at the factory. Maximum flexibility in wiring is therefore guaranteed!
Enjoy your freedom with the selected quality products from WATTSTUNDE!
Further information
In addition to a battery, you also need a charge controller that prevents the power supply and thus overcharging or deep discharging of the battery. It also ensures an optimum charging voltage and guarantees the necessary reverse current protection at night.
You can find our range of charge controllers here.
We recommend using MPPT charge controllers. These can determine the constantly changing operating point of the maximum energy yield again and again and thus maximise the yields. Especially in diffuse light conditions, significantly higher amounts of electricity can be produced!
Technical data | |
|---|---|
| Rated power (Pmpp) | 125 W |
| Max. Daily yield (summer) | 500 Wh/d |
| Short-circuit current (Isc) | 3,75 A |
| Open circuit voltage (Uoc) | 40,5 V |
| Voltage (Umpp) | 35,0 V |
| Current (Impp) | 3,39 A |
| Cell efficiency | >22% |
| Number of cells | 62 |
| Junction box | 25mm height | IP 65 |
| Dimensions (LxWxH) in mm | 1250 x 520 x 4 |
| weight | 4.41 kg |
Product number: 36113
| Model | WS125EFX |
| Manufacturer | Wattstunde |
| Content | 1 piece |
| Weight | 3900 g |
| Condition | New |
